CSD22206WT

CSD22206WT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-9 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 8 V 2 A continuous drain current Rds On value of 9.1 mOhms Gate-Source Threshold Voltage Range: 700 mV Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 20 S 45 ns fall time MOSFET product type Rise Time is 17 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 118 ns. The typical turn-on delay time is 37 ns. 1. 0.007055 oz of Unit Weight

CSD22206WT Image

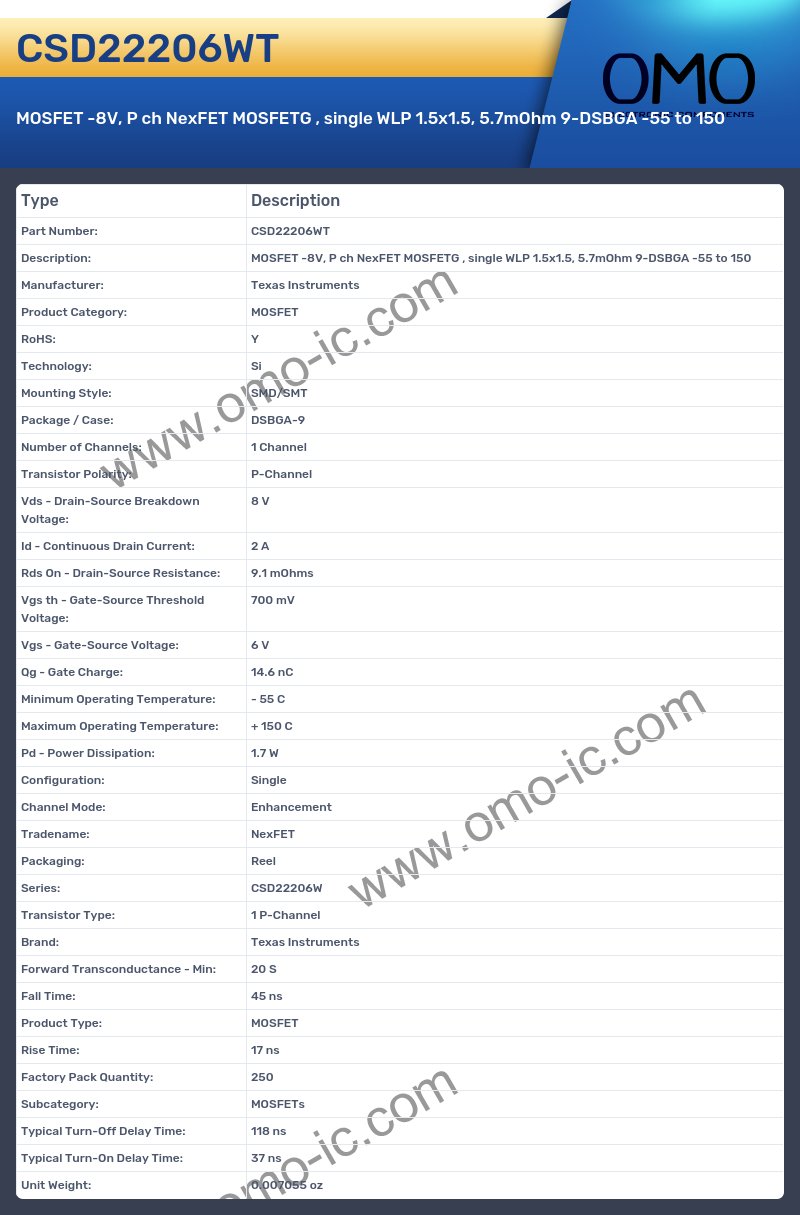

CSD22206WT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-9
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 8 V
• Id - Continuous Drain Current: 2 A
• Rds On - Drain-Source Resistance: 9.1 mOhms
• Vgs th - Gate-Source Threshold Voltage: 700 mV
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 14.6 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.7 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Series: CSD22206W
• Transistor Type: 1 P-Channel
• Brand: Texas Instruments
• Forward Transconductance - Min: 20 S
• Fall Time: 45 ns
• Product Type: MOSFET
• Rise Time: 17 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 118 ns
• Typical Turn-On Delay Time: 37 ns
• Unit Weight: 0.007055 oz
