CSD18535KCS

CSD18535KCS Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 279 A continuous drain current Rds On value of 2 mOhms Gate-Source Threshold Voltage Range: 1.4 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 16.51 mm. 10.67 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 263 S 3 ns fall time MOSFET product type Rise Time is 3 ns. 50 of 100 MOSFETs as subcategory Turn-off delay time is 19 ns. The typical turn-on delay time is 9 ns. 1. 0.063493 oz of Unit Weight

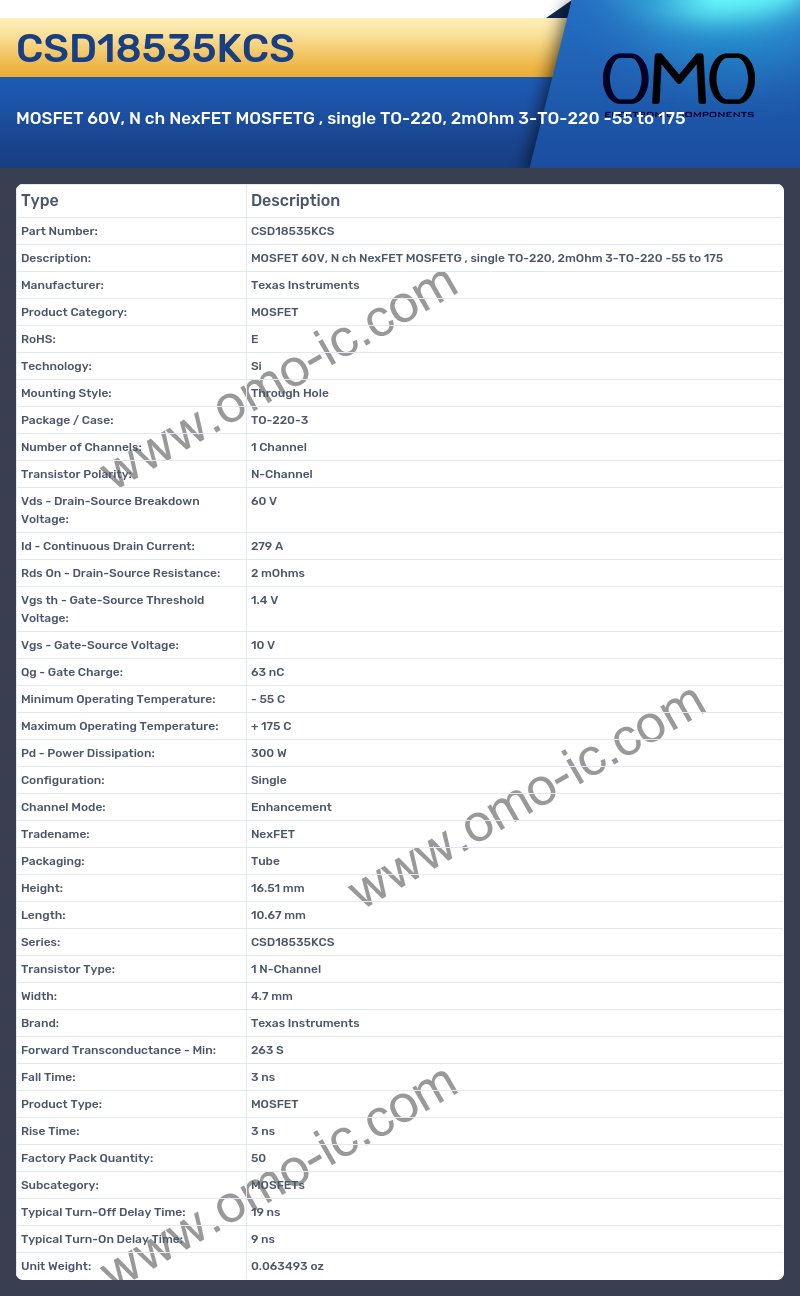

CSD18535KCS Image

CSD18535KCS Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 279 A
• Rds On - Drain-Source Resistance: 2 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.4 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 63 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Tube
• Height: 16.51 mm
• Length: 10.67 mm
• Series: CSD18535KCS
• Transistor Type: 1 N-Channel
• Width: 4.7 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 263 S
• Fall Time: 3 ns
• Product Type: MOSFET
• Rise Time: 3 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 19 ns
• Typical Turn-On Delay Time: 9 ns
• Unit Weight: 0.063493 oz
