CD74HCT563E Overview

This product is manufactured by Texas Instruments. This product has 8 Circuit circuit. Transparent Latch. The product uses the 74HCT logic family. Polarity type: Inverting This product has a - 6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 30 ns at 4.5 V. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Octal Transparent The height of the product is 4.57 mm. 24.33 mm long The output type is 3-State. This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 8 Channels for efficient performance. Maximum supply current: 8 uA 4.5 V to 5.5 V operating supply voltage range Latches product type No Reset Reset Type 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight

CD74HCT563E Image

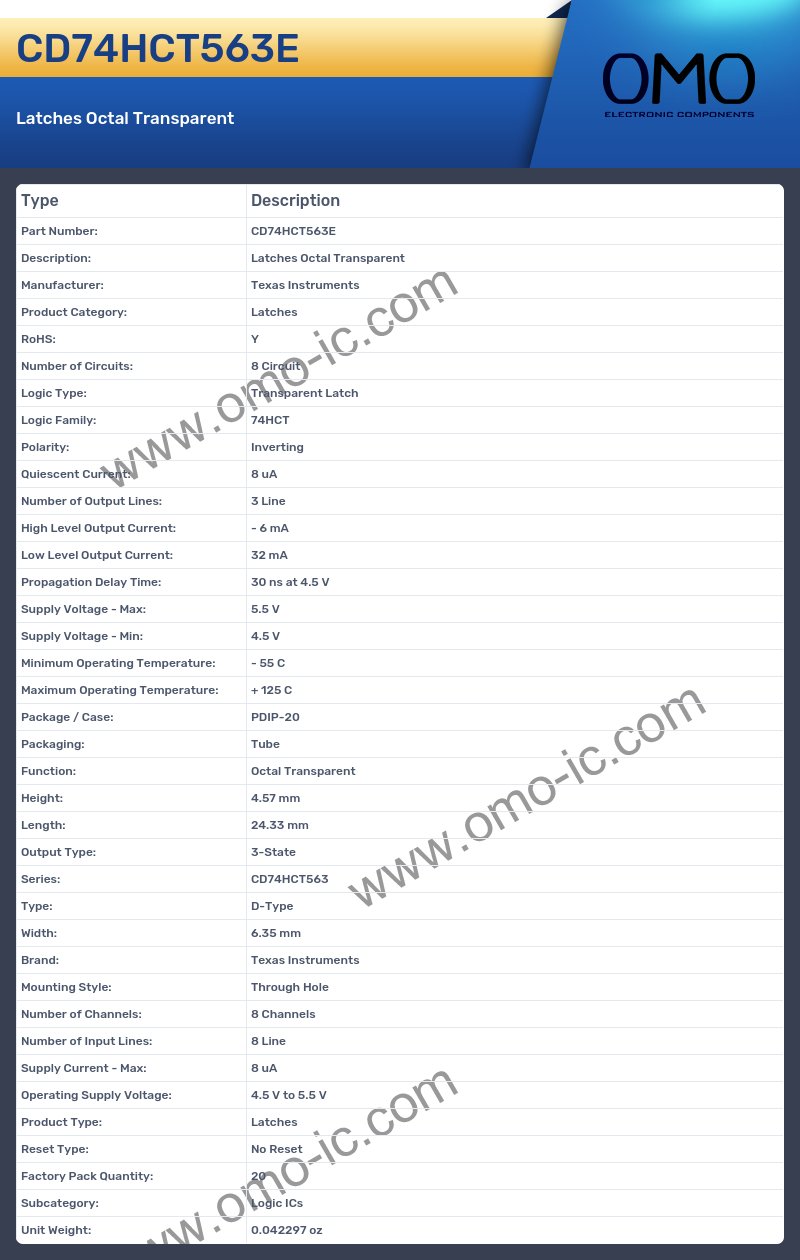

CD74HCT563E Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 8 Circuit
• Logic Type: Transparent Latch
• Logic Family: 74HCT
• Polarity: Inverting
• Quiescent Current: 8 uA
• Number of Output Lines: 3 Line
• High Level Output Current: - 6 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 30 ns at 4.5 V
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Octal Transparent
• Height: 4.57 mm
• Length: 24.33 mm
• Output Type: 3-State
• Series: CD74HCT563
• Type: D-Type
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 8 Channels
• Number of Input Lines: 8 Line
• Supply Current - Max: 8 uA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.042297 oz
