CD74AC323M

CD74AC323M Overview

This product is manufactured by Texas Instruments. Serial/Parallel to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit SOIC-20 package/case type is utilized by this product. The product uses the AC logic family. CMOS. The output type is 3-State. The propagation delay time is 162 ns, 18.1 ns, 12.9 ns. Supply Voltage - Min: 1.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing t's a Shift Register The height of the product is 2.35 mm. 12.8 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. Maximum supply current: 0.008 mA 1.8 V, 2, 5 V, 3.3 V, 5 V operating supply voltage range Counter Shift Registers product type Synchronous Reset Type 25 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.017637 oz of Unit Weight

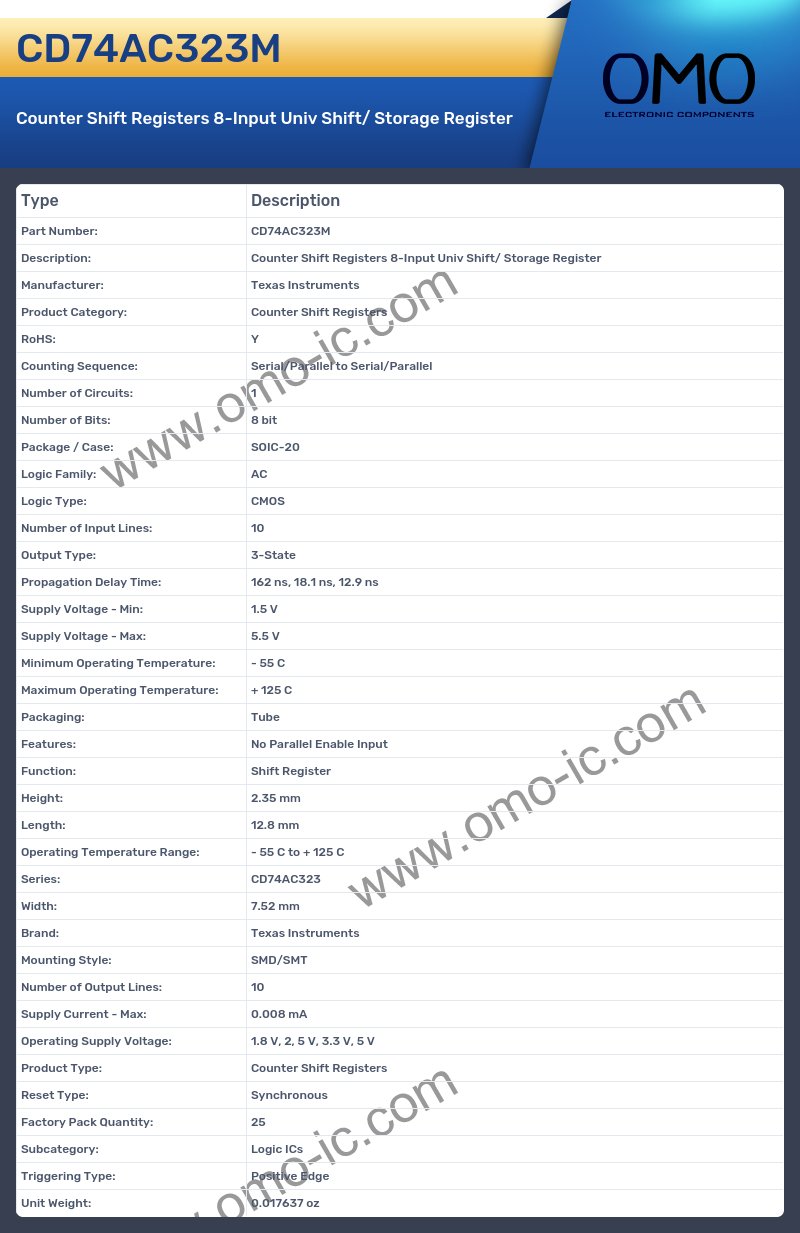

CD74AC323M Image

CD74AC323M Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial/Parallel to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: SOIC-20
• Logic Family: AC
• Logic Type: CMOS
• Number of Input Lines: 10
• Output Type: 3-State
• Propagation Delay Time: 162 ns, 18.1 ns, 12.9 ns
• Supply Voltage - Min: 1.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 2.35 mm
• Length: 12.8 mm
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD74AC323
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 10
• Supply Current - Max: 0.008 mA
• Operating Supply Voltage: 1.8 V, 2, 5 V, 3.3 V, 5 V
• Product Type: Counter Shift Registers
• Reset Type: Synchronous
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.017637 oz
