CD4536BDWR

CD4536BDWR Overview

This product is manufactured by Texas Instruments. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Reel packaging for easy dispensing The output type is CMOS. Texas Instruments is a trusted brand for quality electronics Maximum propagation delay: 3000 ns This product has a 4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 4 mA 500 mW (1/2 W) Timers & Support Products product type 2000 of 100 Clock & Timer ICs as subcategory 1. 0.014829 oz of Unit Weight

CD4536BDWR Image

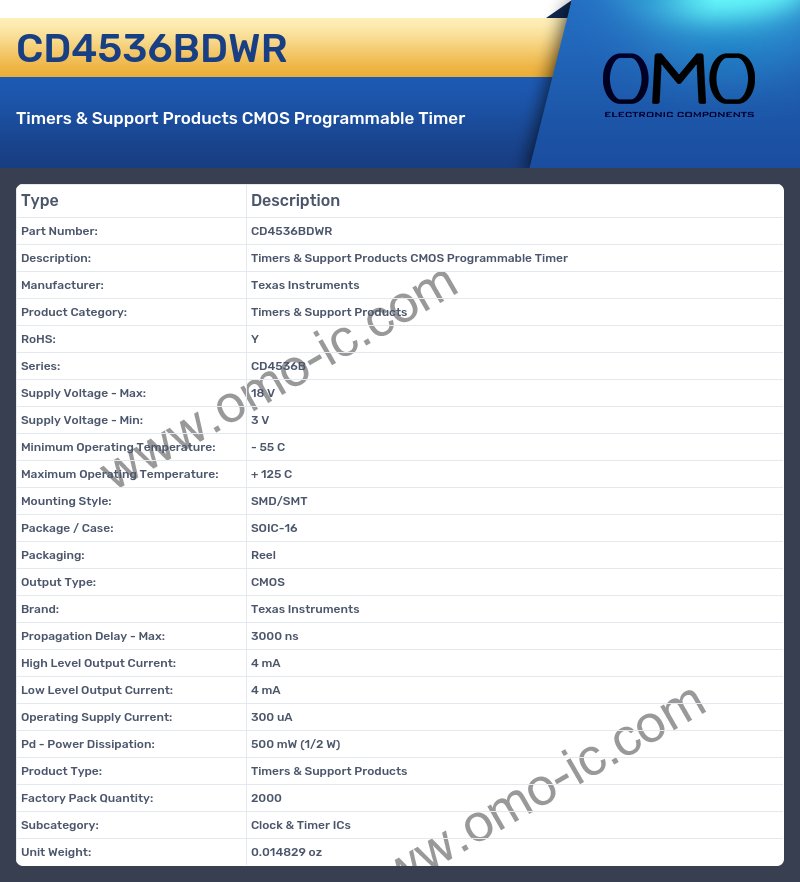

CD4536BDWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Timers & Support Products
• RoHS: Y
• Series: CD4536B
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Reel
• Output Type: CMOS
• Brand: Texas Instruments
• Propagation Delay - Max: 3000 ns
• High Level Output Current: 4 mA
• Low Level Output Current: 4 mA
• Operating Supply Current: 300 uA
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Timers & Support Products
• Factory Pack Quantity: 2000
• Subcategory: Clock & Timer ICs
• Unit Weight: 0.014829 oz
