AMC1304M05DW Overview

This product is manufactured by Texas Instruments. Isolated Analog to Digital Converters This device belongs to the Isolated Precision ADC type. This product is equipped with 1 Channel for efficient performance. 3.3 V, 15 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is CMOS. The sampling rate of this product is 20 MS/s. Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics Interface Type: Serial CMOS This product requires an 4 V to 18 V for proper operation. The 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. - 0.02 % is 0.2%. INL is within 1.5 LSB The Maximum Clock Frequency of this product is 20.1 MHz. Yes regarding Moisture Sensitivity Data Acquisition ADCs/DACs - Specialized product type 40 of 100 Data Converter ICs as subcategory 1. 0.023492 oz of Unit Weight

AMC1304M05DW Image

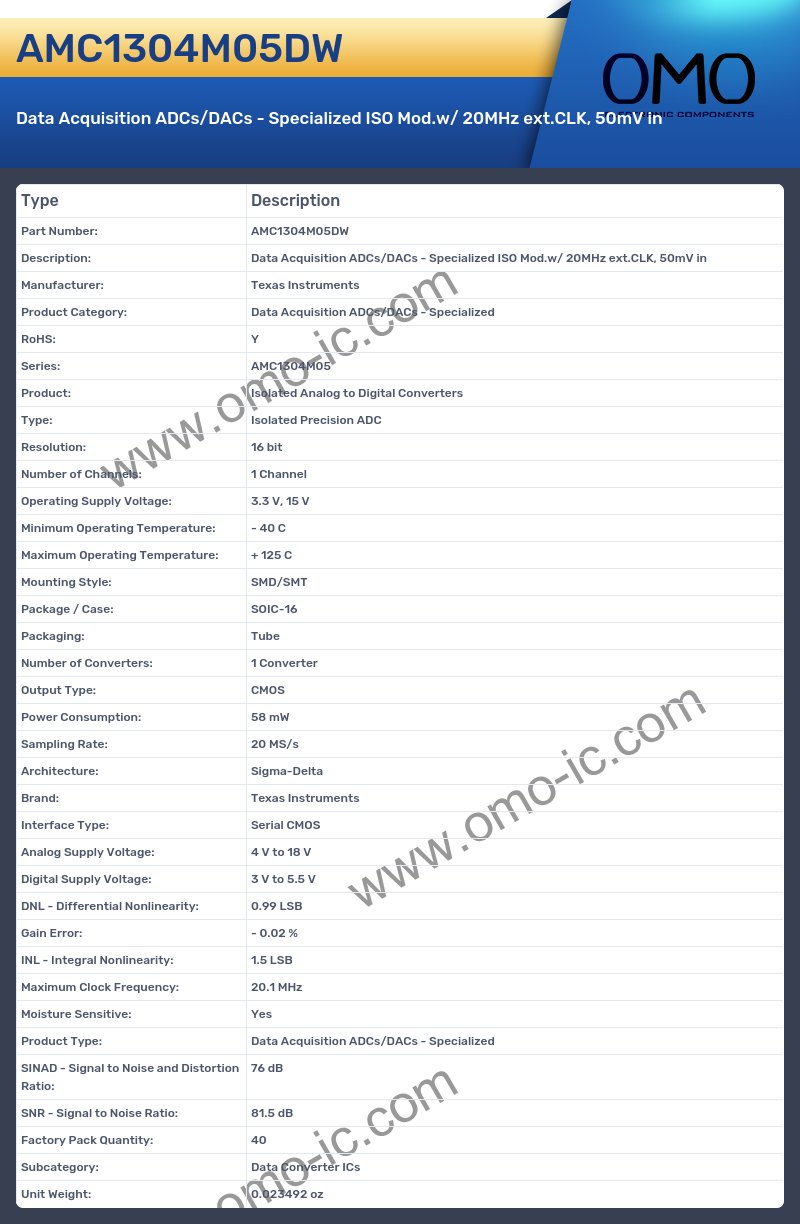

AMC1304M05DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Data Acquisition ADCs/DACs - Specialized
• RoHS: Y
• Series: AMC1304M05
• Product: Isolated Analog to Digital Converters
• Type: Isolated Precision ADC
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Operating Supply Voltage: 3.3 V, 15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Number of Converters: 1 Converter
• Output Type: CMOS
• Power Consumption: 58 mW
• Sampling Rate: 20 MS/s
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Interface Type: Serial CMOS
• Analog Supply Voltage: 4 V to 18 V
• Digital Supply Voltage: 3 V to 5.5 V
• DNL - Differential Nonlinearity: 0.99 LSB
• Gain Error: - 0.02 %
• INL - Integral Nonlinearity: 1.5 LSB
• Maximum Clock Frequency: 20.1 MHz
• Moisture Sensitive: Yes
• Product Type: Data Acquisition ADCs/DACs - Specialized
• SINAD - Signal to Noise and Distortion Ratio: 76 dB
• SNR - Signal to Noise Ratio: 81.5 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• Unit Weight: 0.023492 oz
