ADUM3190BRQZ

ADUM3190BRQZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 2.5 kVrms isolation voltage Galvanic isolation type Bandwidth at -3 dB is 400 kHz This product has a 72 dB of 50 dB, ensuring reliable signal acquisition. This product has an 0.01 uA of 5 uA for precise signal processing. Supply Voltage - Max: 20 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. QSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Isolation. Isolation Amplifiers This device belongs to the Linear type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 20 V This product does not have a No Shutdown feature, ensuring continuous operation. EVAL-ADUM3190EBZ is a versatile development platform for hardware and software Gain ratio is 10 MHz. Yes regarding Moisture Sensitivity 3 V to 20 V operating supply voltage range 1.64 W Isolation Amplifiers product type 98 of 100 Amplifier ICs as subcategory 1. 0.010159 oz of Unit Weight

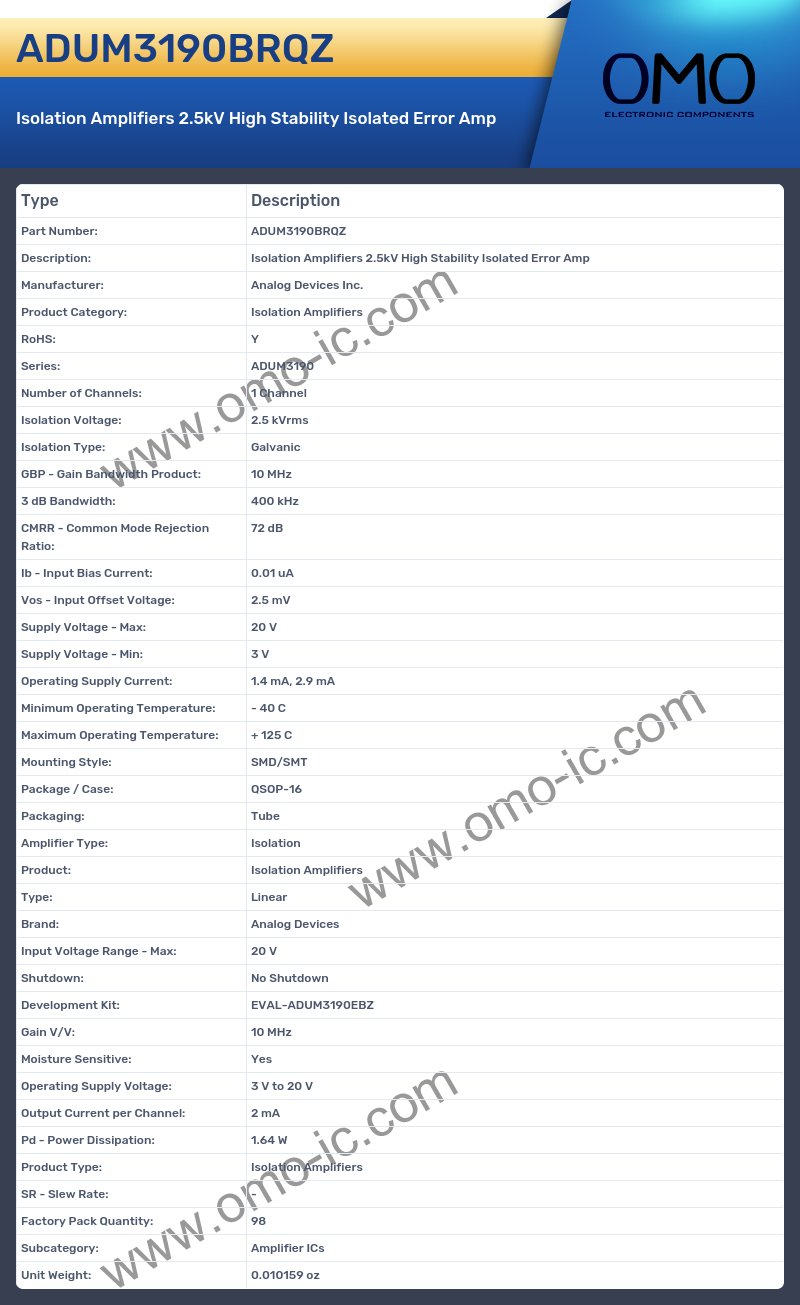

ADUM3190BRQZ Image

ADUM3190BRQZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Isolation Amplifiers
• RoHS: Y
• Series: ADUM3190
• Number of Channels: 1 Channel
• Isolation Voltage: 2.5 kVrms
• Isolation Type: Galvanic
• GBP - Gain Bandwidth Product: 10 MHz
• 3 dB Bandwidth: 400 kHz
• CMRR - Common Mode Rejection Ratio: 72 dB
• Ib - Input Bias Current: 0.01 uA
• Vos - Input Offset Voltage: 2.5 mV
• Supply Voltage - Max: 20 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 1.4 mA, 2.9 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: QSOP-16
• Packaging: Tube
• Amplifier Type: Isolation
• Product: Isolation Amplifiers
• Type: Linear
• Brand: Analog Devices
• Input Voltage Range - Max: 20 V
• Shutdown: No Shutdown
• Development Kit: EVAL-ADUM3190EBZ
• Gain V/V: 10 MHz
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 20 V
• Output Current per Channel: 2 mA
• Pd - Power Dissipation: 1.64 W
• Product Type: Isolation Amplifiers
• SR - Slew Rate: -
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Unit Weight: 0.010159 oz
