ADUM3100BRZ

ADUM3100BRZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Polarity type: Unidirectional 2.5 kVrms isolation voltage Magnetic Coupling isolation type The 100 Mb/s data rate; The propagation delay time is 28 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing Digital Isolators This device belongs to the General Purpose type. Analog Devices is a trusted brand for quality electronics EVAL-CN0196-EB1Z is a versatile development platform for hardware and software The product has a maximum fall time of 3 ns (Typ). 3 ns (Typ) is the maximum rise time. 5.5 V operating supply voltage range 240 mW Digital Isolators product type 98 of 100 Interface ICs as subcategory 1. 0.019048 oz of Unit Weight

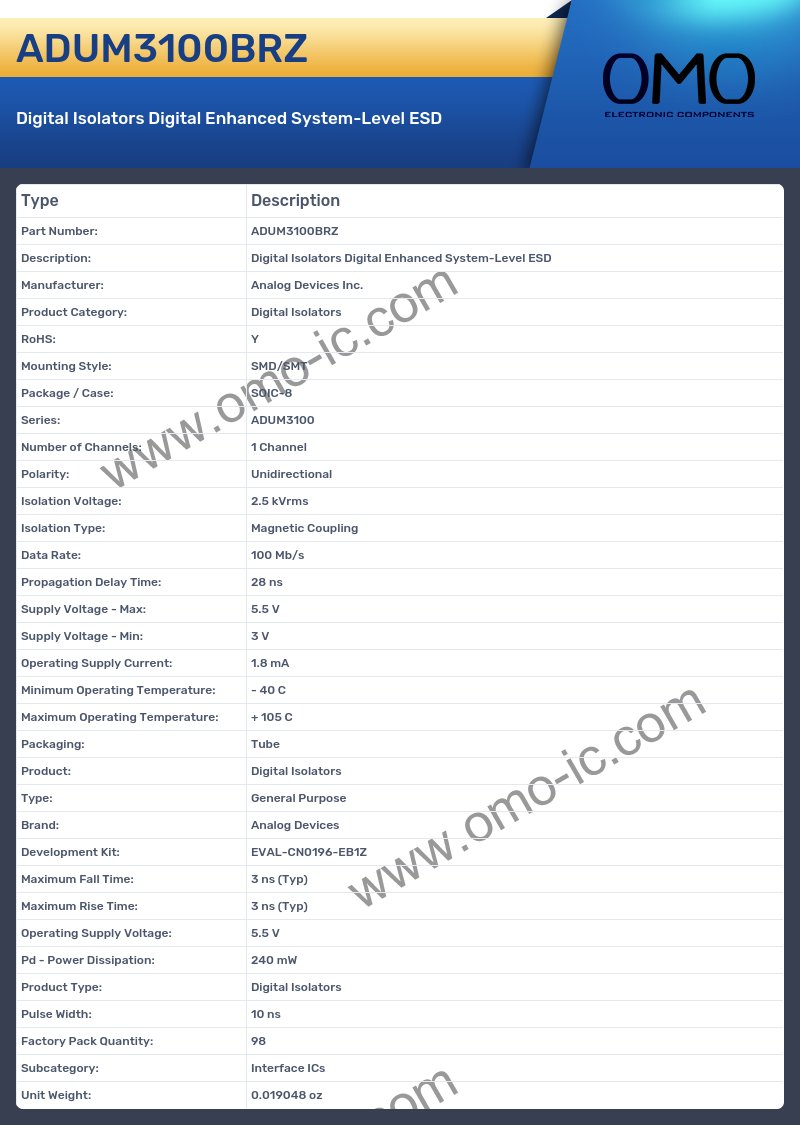

ADUM3100BRZ Image

ADUM3100BRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Series: ADUM3100
• Number of Channels: 1 Channel
• Polarity: Unidirectional
• Isolation Voltage: 2.5 kVrms
• Isolation Type: Magnetic Coupling
• Data Rate: 100 Mb/s
• Propagation Delay Time: 28 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 1.8 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Product: Digital Isolators
• Type: General Purpose
• Brand: Analog Devices
• Development Kit: EVAL-CN0196-EB1Z
• Maximum Fall Time: 3 ns (Typ)
• Maximum Rise Time: 3 ns (Typ)
• Operating Supply Voltage: 5.5 V
• Pd - Power Dissipation: 240 mW
• Product Type: Digital Isolators
• Pulse Width: 10 ns
• Factory Pack Quantity: 98
• Subcategory: Interface ICs
• Unit Weight: 0.019048 oz
