ADS7825UE4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 40 kS/s. Single-Ended input type Interface Type: Parallel, SPI SAR architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 18 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 3 LSB Yes regarding Moisture Sensitivity 4.75 V to 5.25 V operating supply voltage range 50 mW ADCs - Analog to Digital Converters product type 20 of 100 Data Converter ICs as subcategory 1. 0.025778 oz of Unit Weight

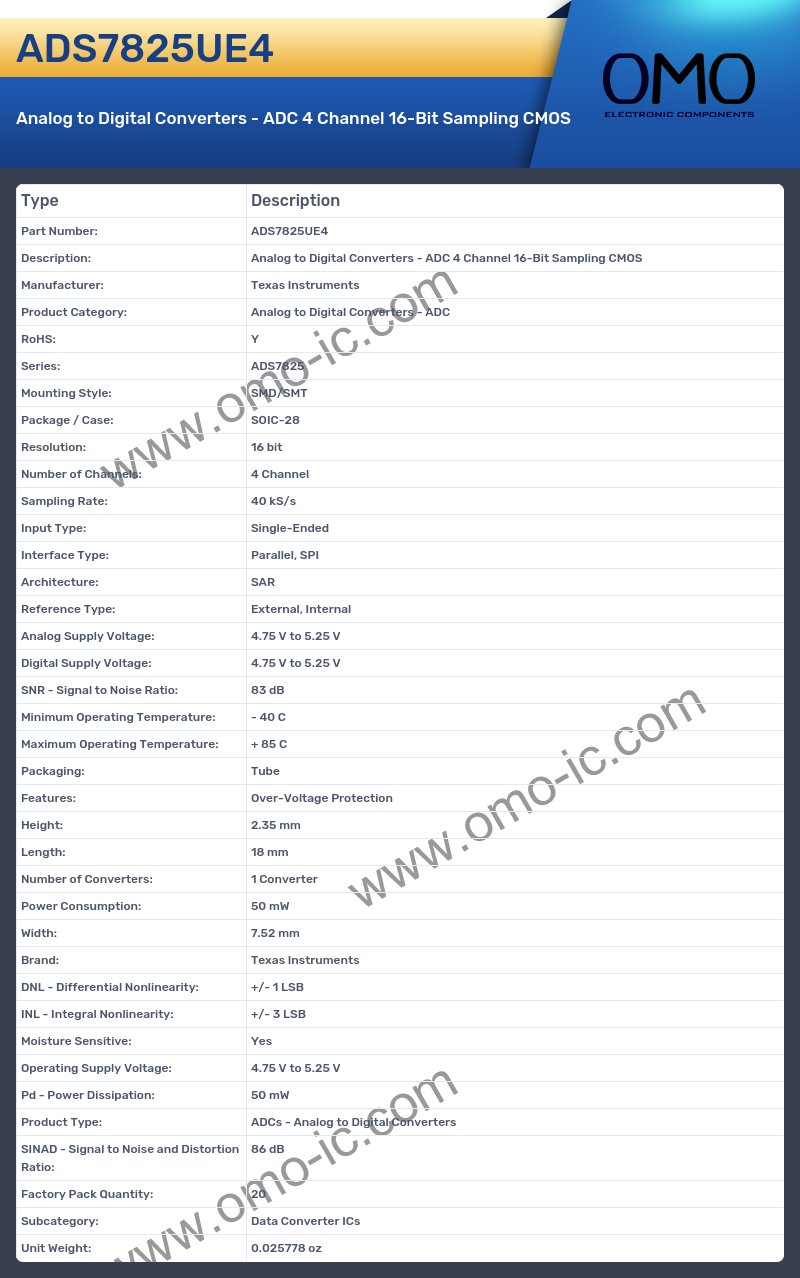

ADS7825UE4 Image

ADS7825UE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7825
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Resolution: 16 bit
• Number of Channels: 4 Channel
• Sampling Rate: 40 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel, SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 83 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Over-Voltage Protection
• Height: 2.35 mm
• Length: 18 mm
• Number of Converters: 1 Converter
• Power Consumption: 50 mW
• Width: 7.52 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 3 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 50 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 86 dB
• Factory Pack Quantity: 20
• Subcategory: Data Converter ICs
• Unit Weight: 0.025778 oz
