ADS7807PBG4

ADS7807PBG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 40 kS/s. Single-Ended input type Interface Type: Parallel, SPI SAR architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 35.69 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. INL is within 1.5 LSB 5 V operating supply voltage range 35 mW ADCs - Analog to Digital Converters product type 13 of 100 Data Converter ICs as subcategory THD is as low as - 100 dB. 1. 0.072798 oz of Unit Weight

ADS7807PBG4 Image

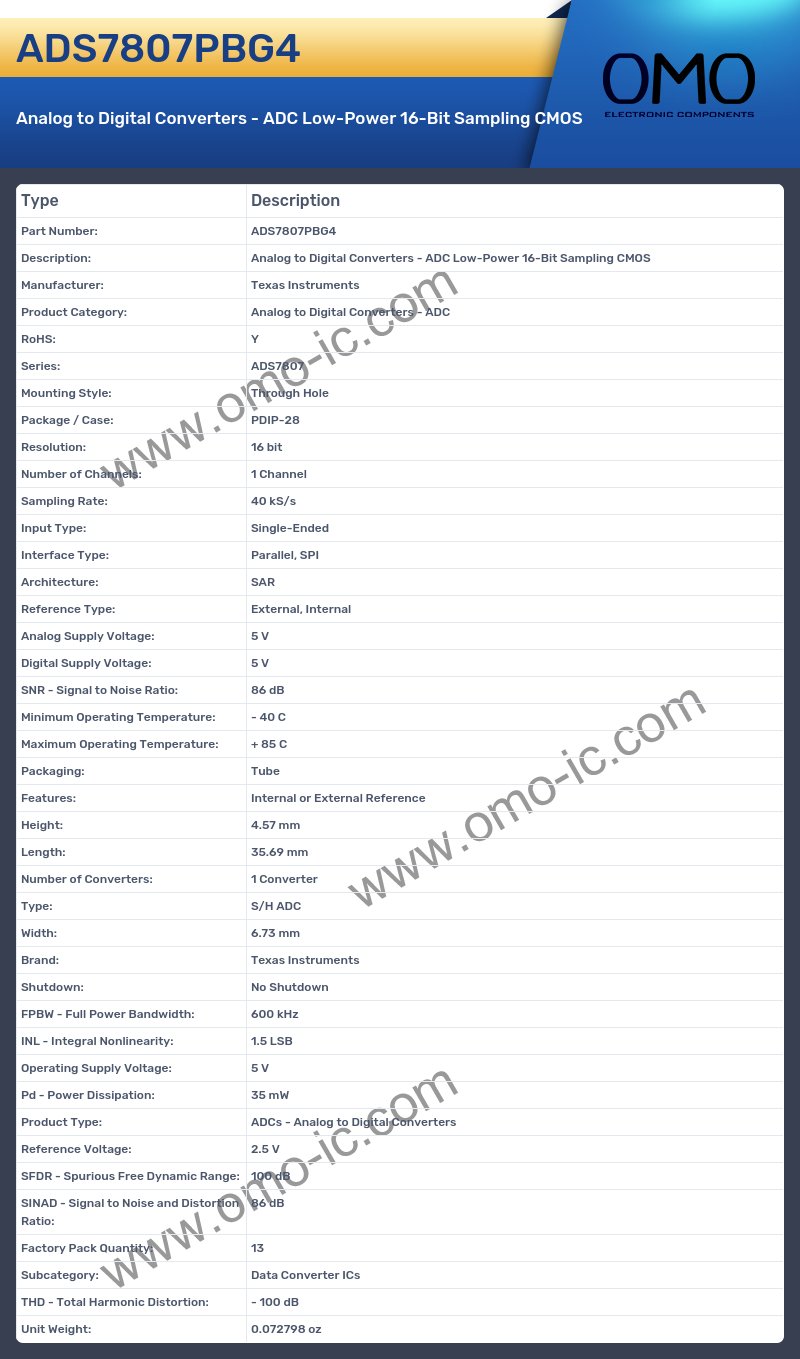

ADS7807PBG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7807
• Mounting Style: Through Hole
• Package / Case: PDIP-28
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 40 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel, SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• SNR - Signal to Noise Ratio: 86 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Internal or External Reference
• Height: 4.57 mm
• Length: 35.69 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 6.73 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• FPBW - Full Power Bandwidth: 600 kHz
• INL - Integral Nonlinearity: 1.5 LSB
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 35 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: 100 dB
• SINAD - Signal to Noise and Distortion Ratio: 86 dB
• Factory Pack Quantity: 13
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 100 dB
• Unit Weight: 0.072798 oz
