ADS5424IPJYR

ADS5424IPJYR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. QFP-52 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 105 MS/s. Differential input type Interface Type: Parallel Pipeline architecture Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.4 mm. 2.2 V Input Voltage 10 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics ADS5424EVM is a versatile development platform for hardware and software The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 5 % FSR is 0.2%. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 2.2 W ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.017496 oz of Unit Weight

ADS5424IPJYR Image

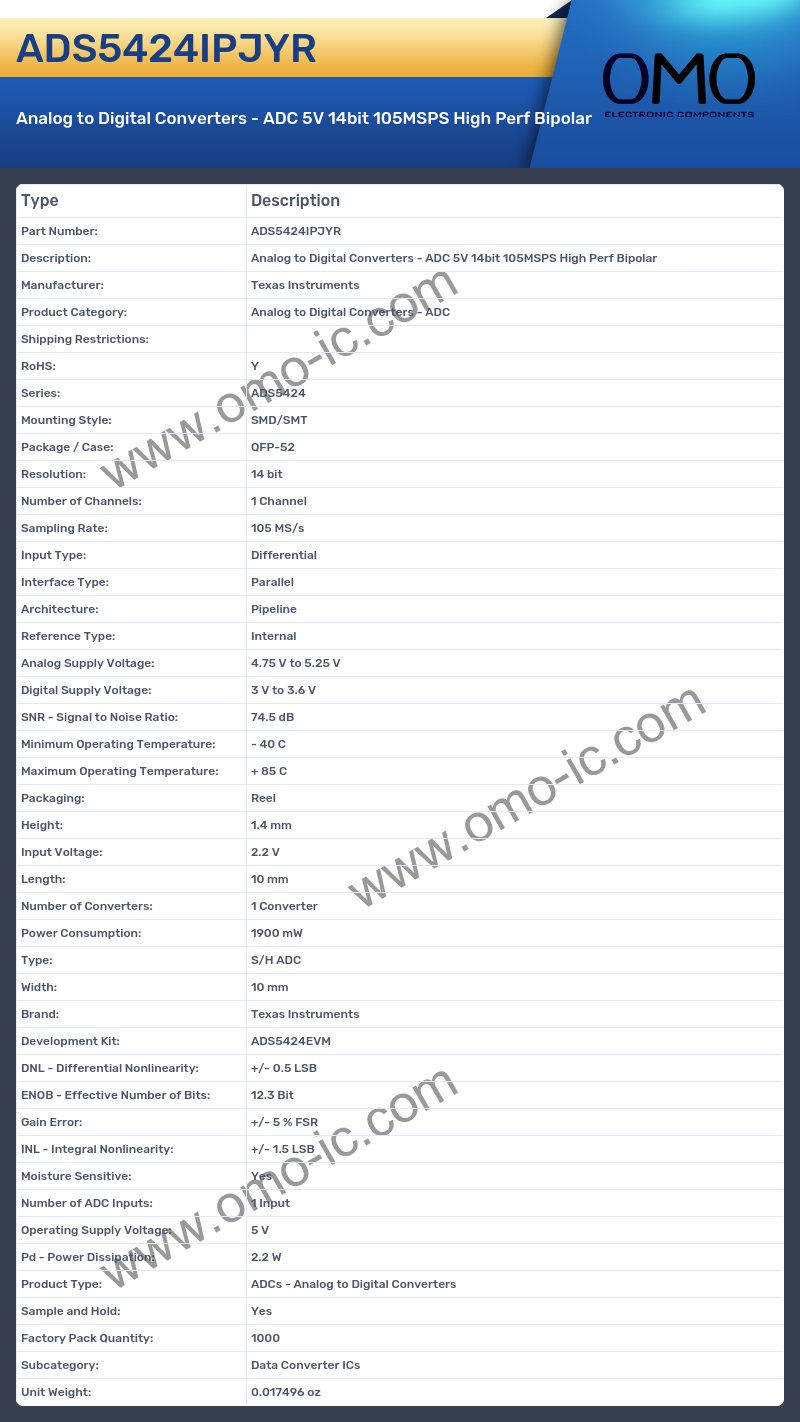

ADS5424IPJYR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• Shipping Restrictions:
• RoHS: Y
• Series: ADS5424
• Mounting Style: SMD/SMT
• Package / Case: QFP-52
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 105 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 74.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.4 mm
• Input Voltage: 2.2 V
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 1900 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Texas Instruments
• Development Kit: ADS5424EVM
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• ENOB - Effective Number of Bits: 12.3 Bit
• Gain Error: +/- 5 % FSR
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 2.2 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.017496 oz
