ADL5801ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. This product operates at 10 MHz to 6 GHz RF frequency range. The Conversion Loss - Max is rated at 1.8 dB. LO Frequency range is 10 MHz to 6 GHz. The IF Frequency range is 10 MHz to 600 MHz. The product can operate at a maximum temperature of + 85 C. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-24 package/case type is utilized by this product. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics - 7.25 dB is 11.5 dB. ADL5801-EVALZ is a versatile development platform for hardware and software 6000 MHz Minimum Operating Frequency for high-speed operation Yes regarding Moisture Sensitivity The 24 dBm value is 32 dBm. 5 V operating supply voltage range The 9.9 dBm is 17 dBm. RF Mixer product type 1500 of 100 Wireless & RF Integrated Circuits as subcategory

ADL5801ACPZ-R7 Image

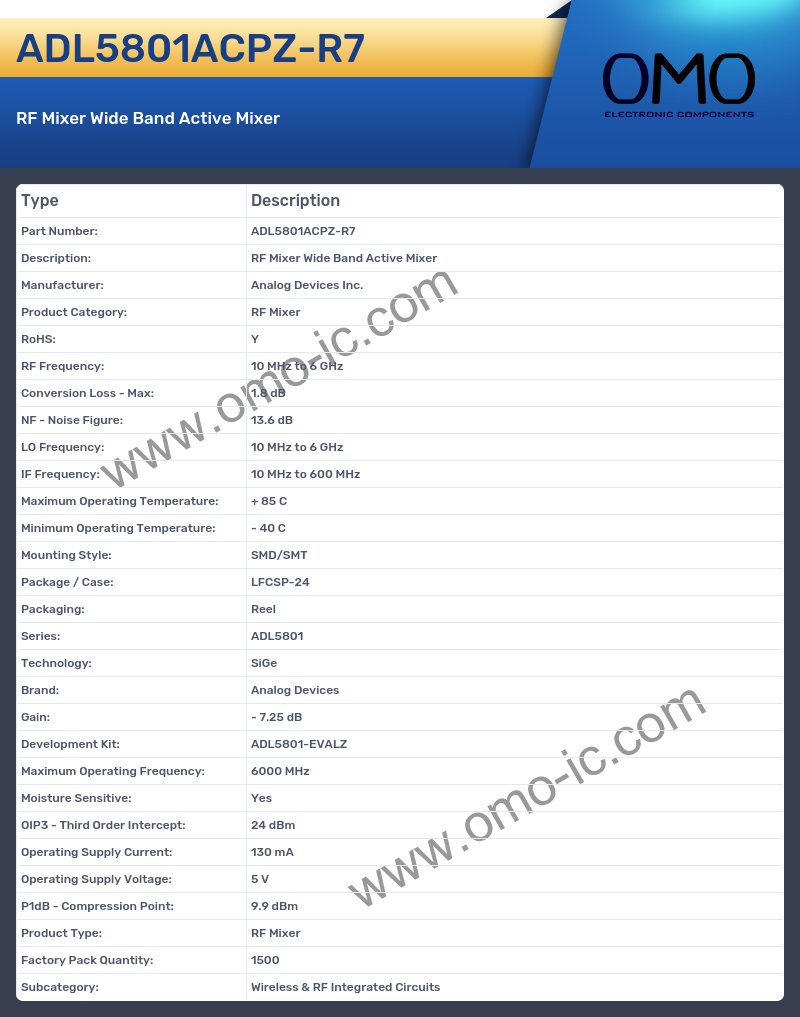

ADL5801ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RF Mixer
• RoHS: Y
• RF Frequency: 10 MHz to 6 GHz
• Conversion Loss - Max: 1.8 dB
• NF - Noise Figure: 13.6 dB
• LO Frequency: 10 MHz to 6 GHz
• IF Frequency: 10 MHz to 600 MHz
• Maximum Operating Temperature: + 85 C
• Minimum Operating Temperature: - 40 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-24
• Packaging: Reel
• Series: ADL5801
• Technology: SiGe
• Brand: Analog Devices
• Gain: - 7.25 dB
• Development Kit: ADL5801-EVALZ
• Maximum Operating Frequency: 6000 MHz
• Moisture Sensitive: Yes
• OIP3 - Third Order Intercept: 24 dBm
• Operating Supply Current: 130 mA
• Operating Supply Voltage: 5 V
• P1dB - Compression Point: 9.9 dBm
• Product Type: RF Mixer
• Factory Pack Quantity: 1500
• Subcategory: Wireless & RF Integrated Circuits
