ADG512TQ

ADG512TQ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPST configuration. Maximum switch voltage is 5 V Our product has a maximum 375 ns. Our product has a maximum 150 ns. 3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. CDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm (Max). 21.34 mm (Max) long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 1 uA 1. The maximum dual supply voltage is +/- 5.5 V. +/- 4.5 V minimum dual supply voltage 10 uW Analog Switch ICs product type 25 of 100 Switch ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V Maximum continuous current: 30 mA

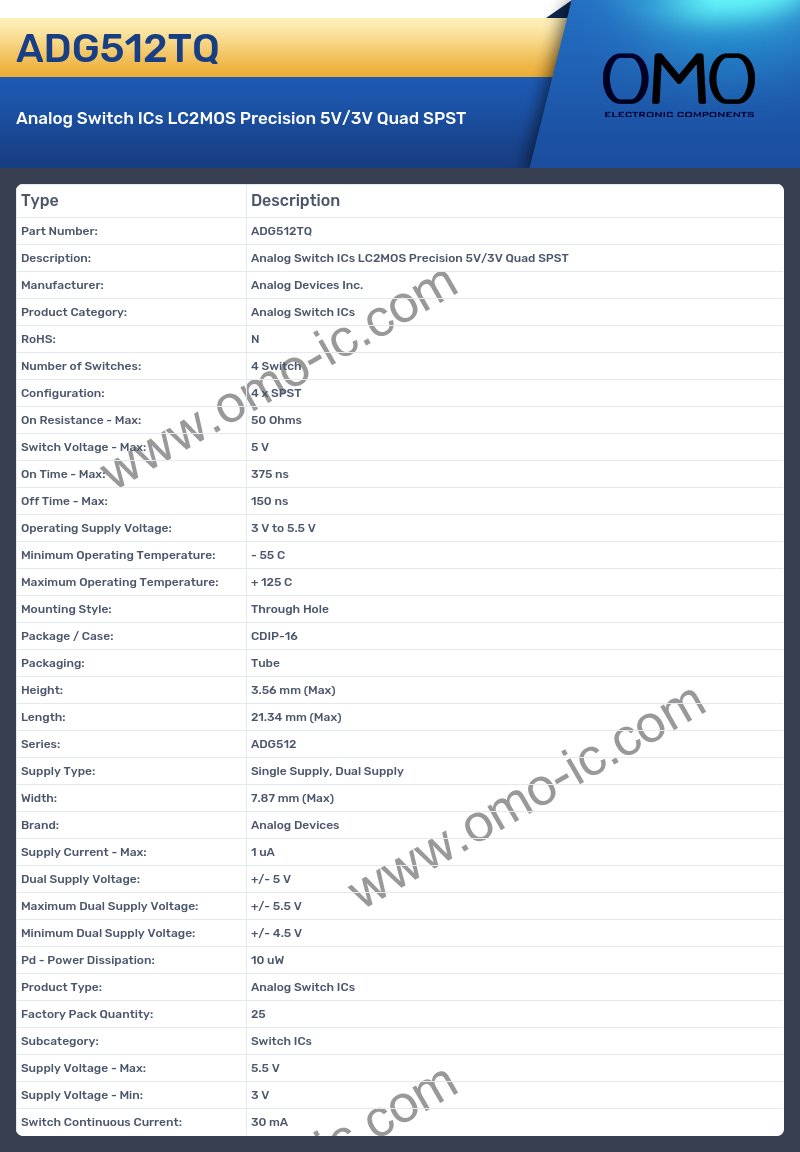

ADG512TQ Image

ADG512TQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: N
• Number of Switches: 4 Switch
• Configuration: 4 x SPST
• On Resistance - Max: 50 Ohms
• Switch Voltage - Max: 5 V
• On Time - Max: 375 ns
• Off Time - Max: 150 ns
• Operating Supply Voltage: 3 V to 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: CDIP-16
• Packaging: Tube
• Height: 3.56 mm (Max)
• Length: 21.34 mm (Max)
• Series: ADG512
• Supply Type: Single Supply, Dual Supply
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Supply Current - Max: 1 uA
• Dual Supply Voltage: +/- 5 V
• Maximum Dual Supply Voltage: +/- 5.5 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 10 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 25
• Subcategory: Switch ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Switch Continuous Current: 30 mA
