ADCMP564BRQZ

ADCMP564BRQZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QSOP-16 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 2 Channel for efficient performance. The output type is ECL. This product has an 3 uA of 5 uA for precise signal processing. Supply Voltage - Max: 5 V Supply Voltage - Min: - 5.2 V 500 ps response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.65 mm (Max). 8.66 mm long Analog Comparators Supply Type: Dual This device belongs to the High Speed PECL Comparator type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. EVAL-ADCMP564BRQZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is - 5.45 V, 5.25 V. - 4.96 V, 4.75 V minimum dual supply voltage 120 mW Analog Comparators product type The propagation delay time is 750 ps. This product has a 85 dB of 50 dB, providing reliable power supply noise rejection. 56 of 100 Amplifier ICs as subcategory 1. 0.011640 oz of Unit Weight

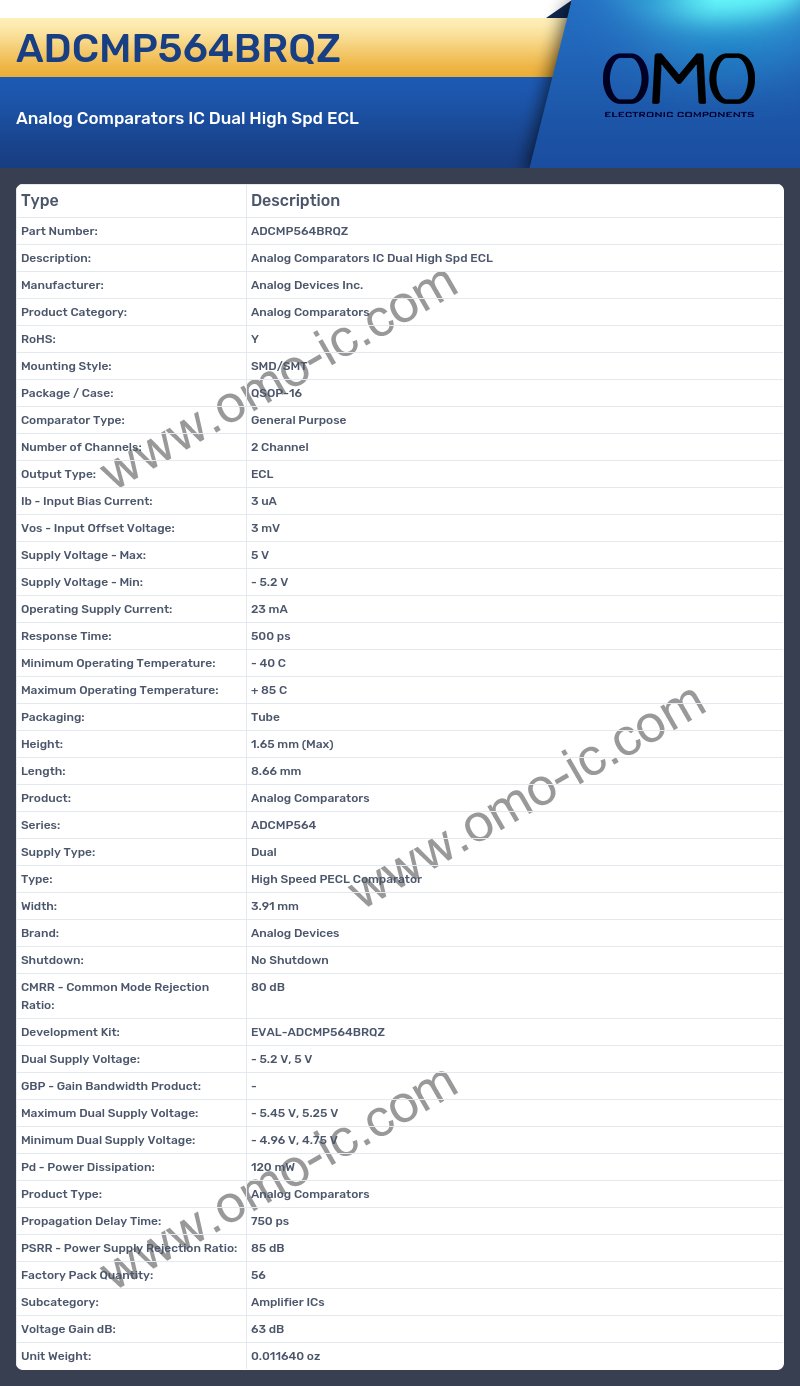

ADCMP564BRQZ Image

ADCMP564BRQZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: QSOP-16
• Comparator Type: General Purpose
• Number of Channels: 2 Channel
• Output Type: ECL
• Ib - Input Bias Current: 3 uA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Max: 5 V
• Supply Voltage - Min: - 5.2 V
• Operating Supply Current: 23 mA
• Response Time: 500 ps
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.65 mm (Max)
• Length: 8.66 mm
• Product: Analog Comparators
• Series: ADCMP564
• Supply Type: Dual
• Type: High Speed PECL Comparator
• Width: 3.91 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 80 dB
• Development Kit: EVAL-ADCMP564BRQZ
• Dual Supply Voltage: - 5.2 V, 5 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: - 5.45 V, 5.25 V
• Minimum Dual Supply Voltage: - 4.96 V, 4.75 V
• Pd - Power Dissipation: 120 mW
• Product Type: Analog Comparators
• Propagation Delay Time: 750 ps
• PSRR - Power Supply Rejection Ratio: 85 dB
• Factory Pack Quantity: 56
• Subcategory: Amplifier ICs
• Voltage Gain dB: 63 dB
• Unit Weight: 0.011640 oz
