AD8146ACPZ-R7

AD8146ACPZ-R7 Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 3 Channel for efficient performance. This product has a 53 dB of 50 dB, ensuring reliable signal acquisition. This product has an 160 uA of 5 uA for precise signal processing. Supply Voltage - Max: 11 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-24 package/case type is utilized by this product. Reel packaging for easy dispensing The amplifier type is Video Driver. The height of the product is 0.83 mm. 4 mm long The output type is Differential. Differential Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 200 MHz 0.1 dB gain flatness Bandwidth at -3 dB is 900 MHz Gain ratio is 2 V/V. 1. The maximum dual supply voltage is +/- 5.5 V. +/- 4.5 V minimum dual supply voltage Yes regarding Moisture Sensitivity 4.5 V to 11 V operating supply voltage range Differential Amplifiers product type This product has a 66 dB of 50 dB, providing reliable power supply noise rejection. 1500 of 100 Amplifier ICs as subcategory

AD8146ACPZ-R7 Image

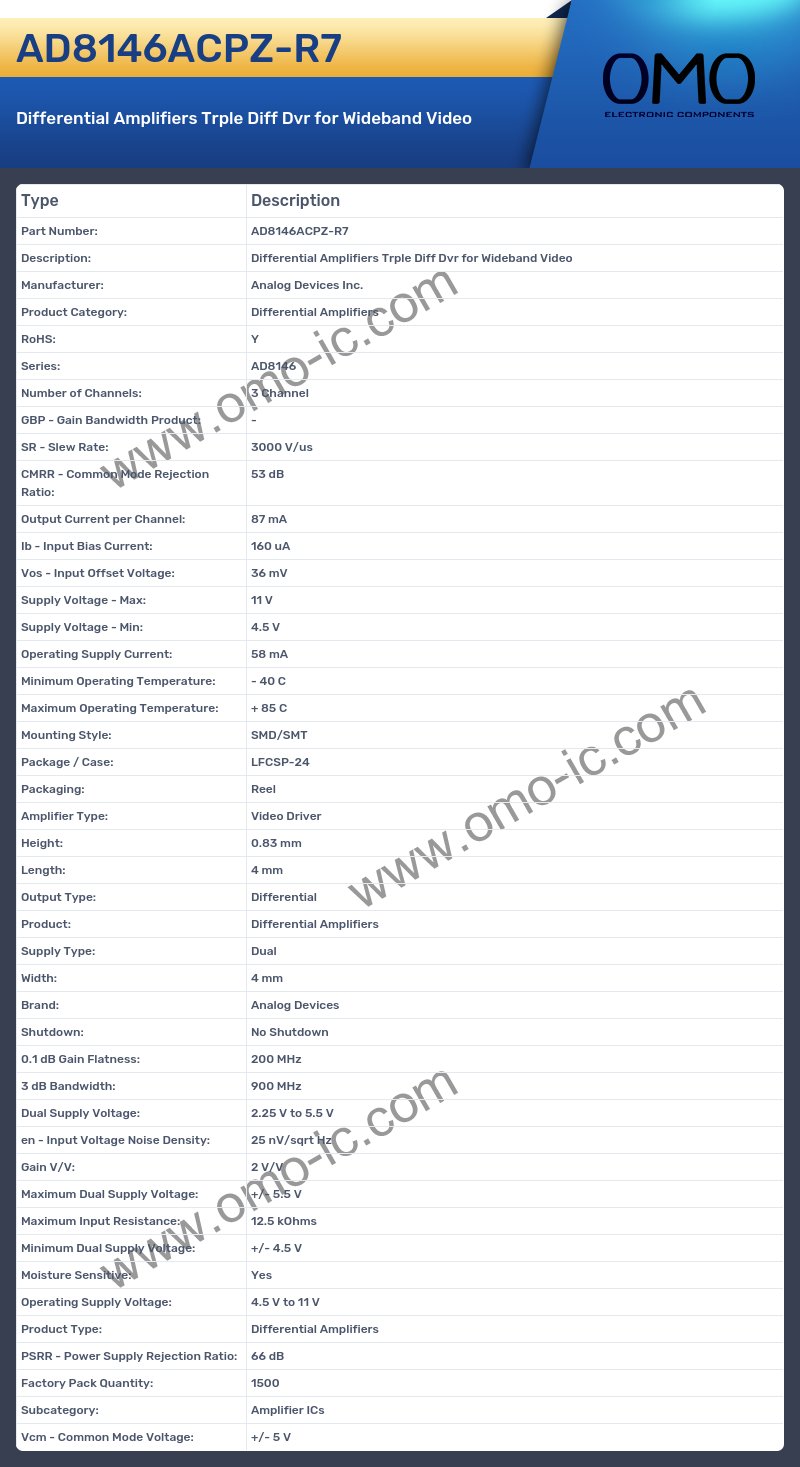

AD8146ACPZ-R7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Differential Amplifiers
• RoHS: Y
• Series: AD8146
• Number of Channels: 3 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 3000 V/us
• CMRR - Common Mode Rejection Ratio: 53 dB
• Output Current per Channel: 87 mA
• Ib - Input Bias Current: 160 uA
• Vos - Input Offset Voltage: 36 mV
• Supply Voltage - Max: 11 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 58 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-24
• Packaging: Reel
• Amplifier Type: Video Driver
• Height: 0.83 mm
• Length: 4 mm
• Output Type: Differential
• Product: Differential Amplifiers
• Supply Type: Dual
• Width: 4 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• 0.1 dB Gain Flatness: 200 MHz
• 3 dB Bandwidth: 900 MHz
• Dual Supply Voltage: 2.25 V to 5.5 V
• en - Input Voltage Noise Density: 25 nV/sqrt Hz
• Gain V/V: 2 V/V
• Maximum Dual Supply Voltage: +/- 5.5 V
• Maximum Input Resistance: 12.5 kOhms
• Minimum Dual Supply Voltage: +/- 4.5 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.5 V to 11 V
• Product Type: Differential Amplifiers
• PSRR - Power Supply Rejection Ratio: 66 dB
• Factory Pack Quantity: 1500
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: +/- 5 V
