AD811JR Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. Bandwidth at -3 dB is 140 MHz This product has an 10 uA of 5 uA for precise signal processing. Supply Voltage - Max: 24 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Current Feedback Amplifier. The height of the product is 1.5 mm (Max). No input type 5 mm (Max) long The output type is No. Video Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 56 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 12 V. +/- 4.5 V minimum dual supply voltage 9 V to 24 operating supply voltage range Video Amplifiers product type This product has a 60 dB of 50 dB, providing reliable power supply noise rejection. 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

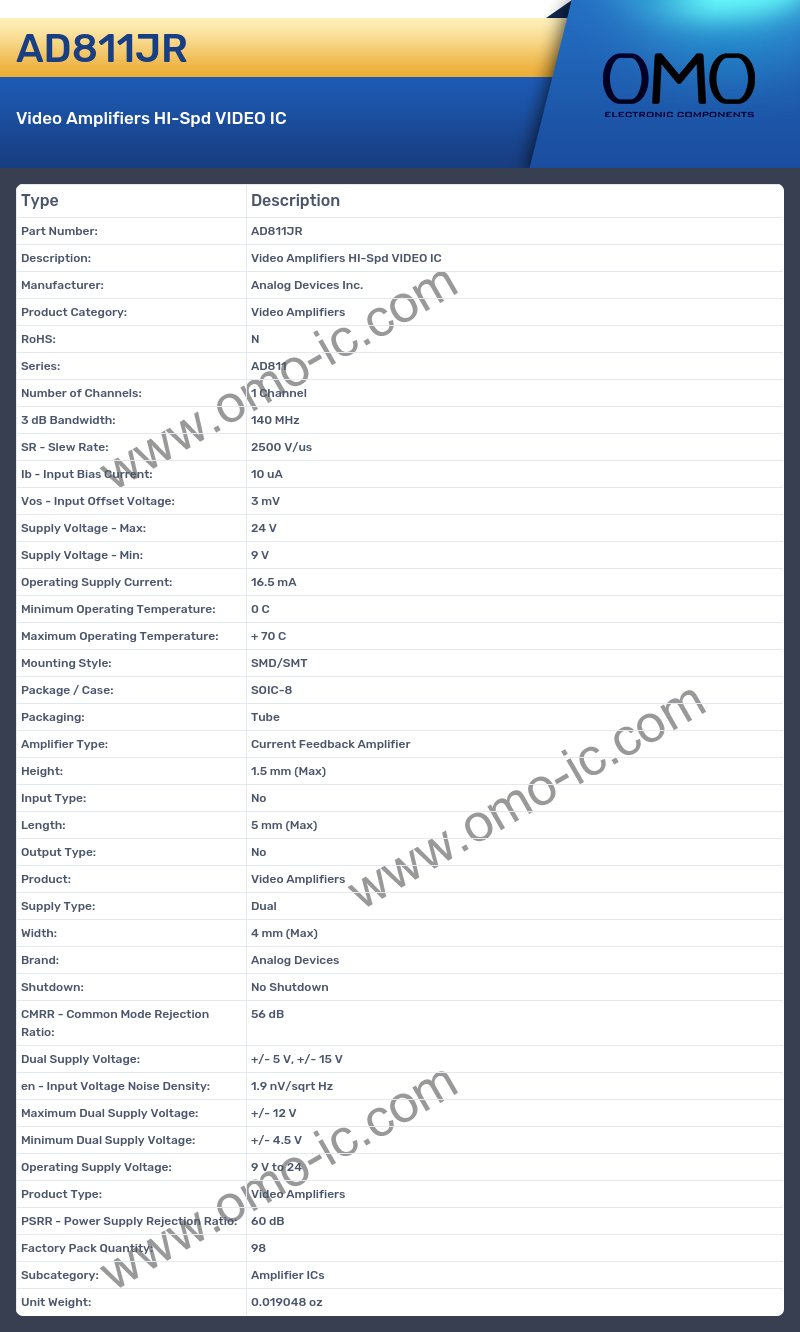

AD811JR Image

AD811JR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD811
• Number of Channels: 1 Channel
• 3 dB Bandwidth: 140 MHz
• SR - Slew Rate: 2500 V/us
• Ib - Input Bias Current: 10 uA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Max: 24 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 16.5 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Current Feedback Amplifier
• Height: 1.5 mm (Max)
• Input Type: No
• Length: 5 mm (Max)
• Output Type: No
• Product: Video Amplifiers
• Supply Type: Dual
• Width: 4 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 56 dB
• Dual Supply Voltage: +/- 5 V, +/- 15 V
• en - Input Voltage Noise Density: 1.9 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 12 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 9 V to 24
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 60 dB
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Unit Weight: 0.019048 oz
