AD7984BCPZ-RL7

AD7984BCPZ-RL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1.33 MS/s. Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.73 mm. +/- 5 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 1 LSB/1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 0.075 %FSR is 0.2%. INL is within +/- 2.25 LSB 2.5 V operating supply voltage range 14 mW ADCs - Analog to Digital Converters product type 1500 of 100 Data Converter ICs as subcategory 1. 0.001376 oz of Unit Weight

AD7984BCPZ-RL7 Image

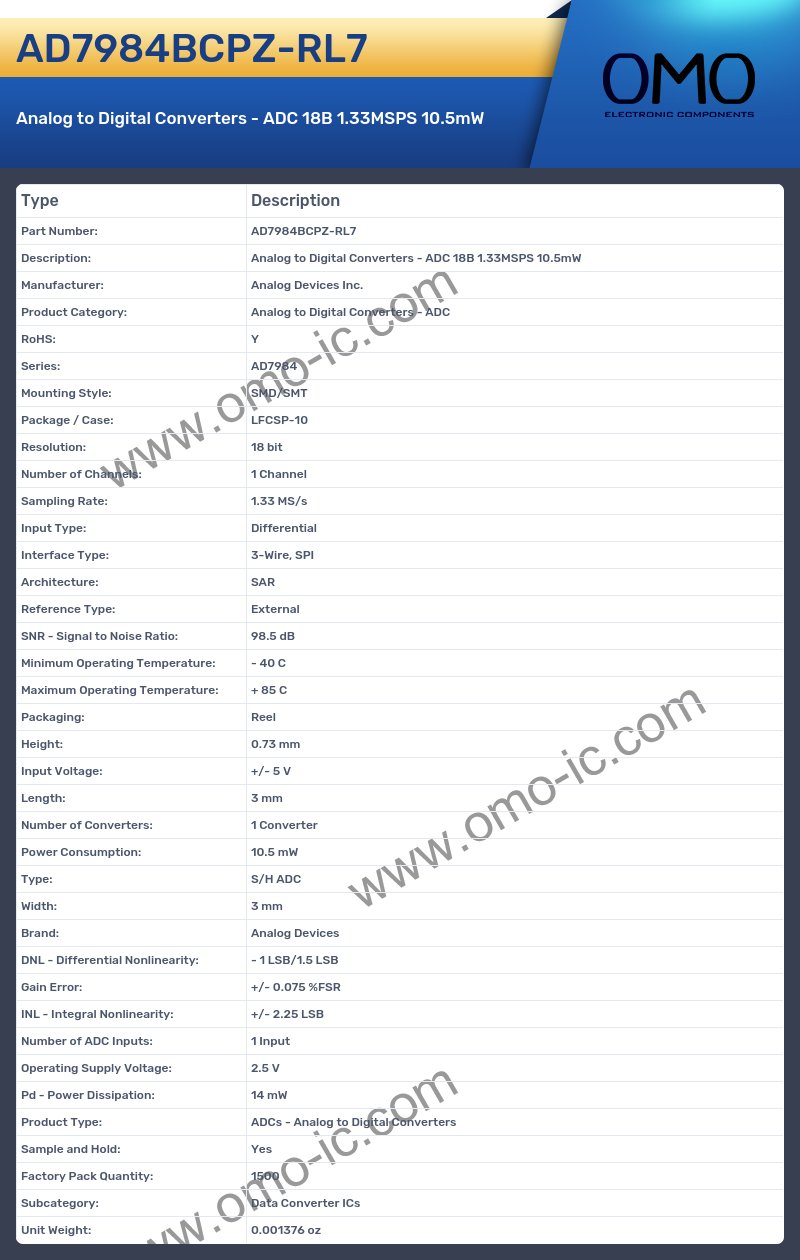

AD7984BCPZ-RL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7984
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-10
• Resolution: 18 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1.33 MS/s
• Input Type: Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 98.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.73 mm
• Input Voltage: +/- 5 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Power Consumption: 10.5 mW
• Type: S/H ADC
• Width: 3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 1 LSB/1.5 LSB
• Gain Error: +/- 0.075 %FSR
• INL - Integral Nonlinearity: +/- 2.25 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 2.5 V
• Pd - Power Dissipation: 14 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• Unit Weight: 0.001376 oz
