AD7825BRZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 2 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.35 mm. 2 Vp-p/2.5 Vp-p Input Voltage 15.6 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 0.75 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2 LSB is 0.2%. INL is within +/- 0.75 LSB 5 V operating supply voltage range 36 mW ADCs - Analog to Digital Converters product type 31 of 100 Data Converter ICs as subcategory 1. 0.038731 oz of Unit Weight

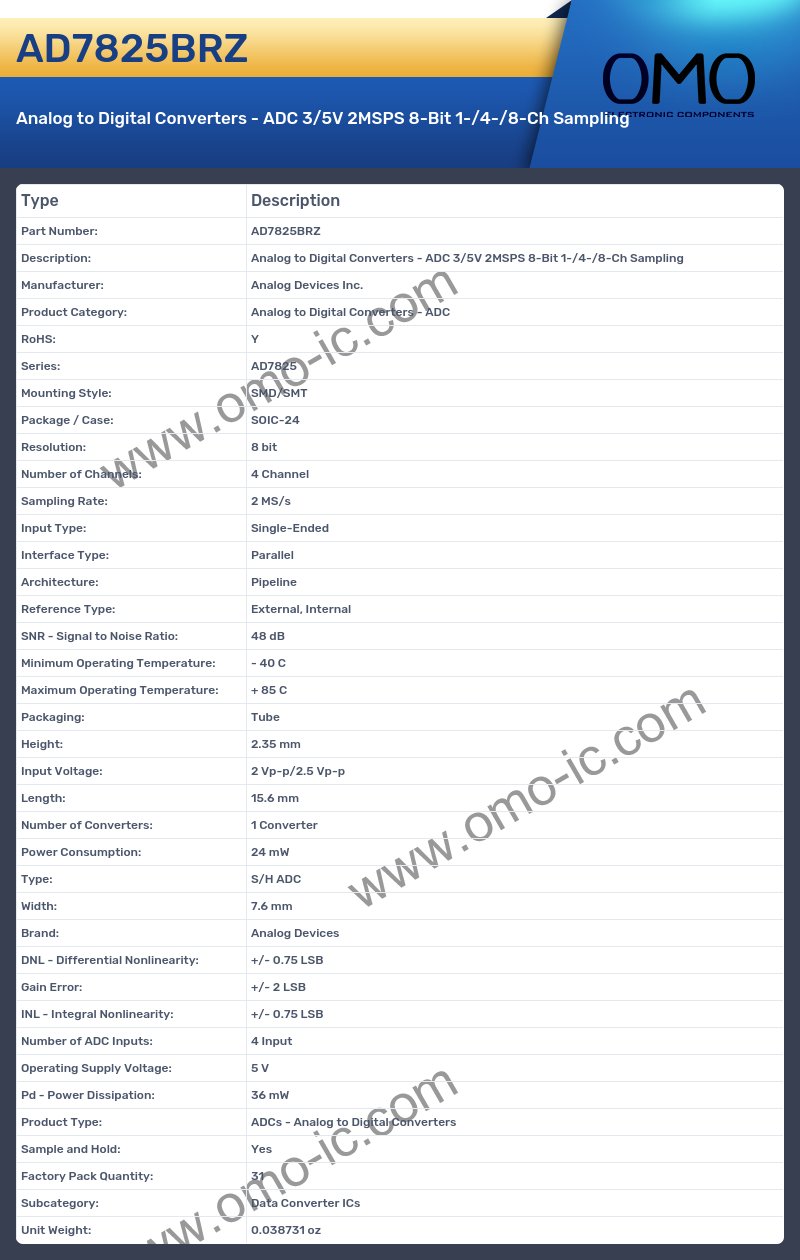

AD7825BRZ Image

AD7825BRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7825
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Resolution: 8 bit
• Number of Channels: 4 Channel
• Sampling Rate: 2 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 48 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 2.35 mm
• Input Voltage: 2 Vp-p/2.5 Vp-p
• Length: 15.6 mm
• Number of Converters: 1 Converter
• Power Consumption: 24 mW
• Type: S/H ADC
• Width: 7.6 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.75 LSB
• Gain Error: +/- 2 LSB
• INL - Integral Nonlinearity: +/- 0.75 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 36 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 31
• Subcategory: Data Converter ICs
• Unit Weight: 0.038731 oz
