AD7821KNZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture External is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 5 V, +/- 2.5 V Input Voltage 26.16 mm long The output type is CMOS/TTL. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics +/- 1 LSB is 0.2%. 5 V operating supply voltage range 100.5 mW ADCs - Analog to Digital Converters product type 18 of 100 Data Converter ICs as subcategory 1. 0.079719 oz of Unit Weight

AD7821KNZ Image

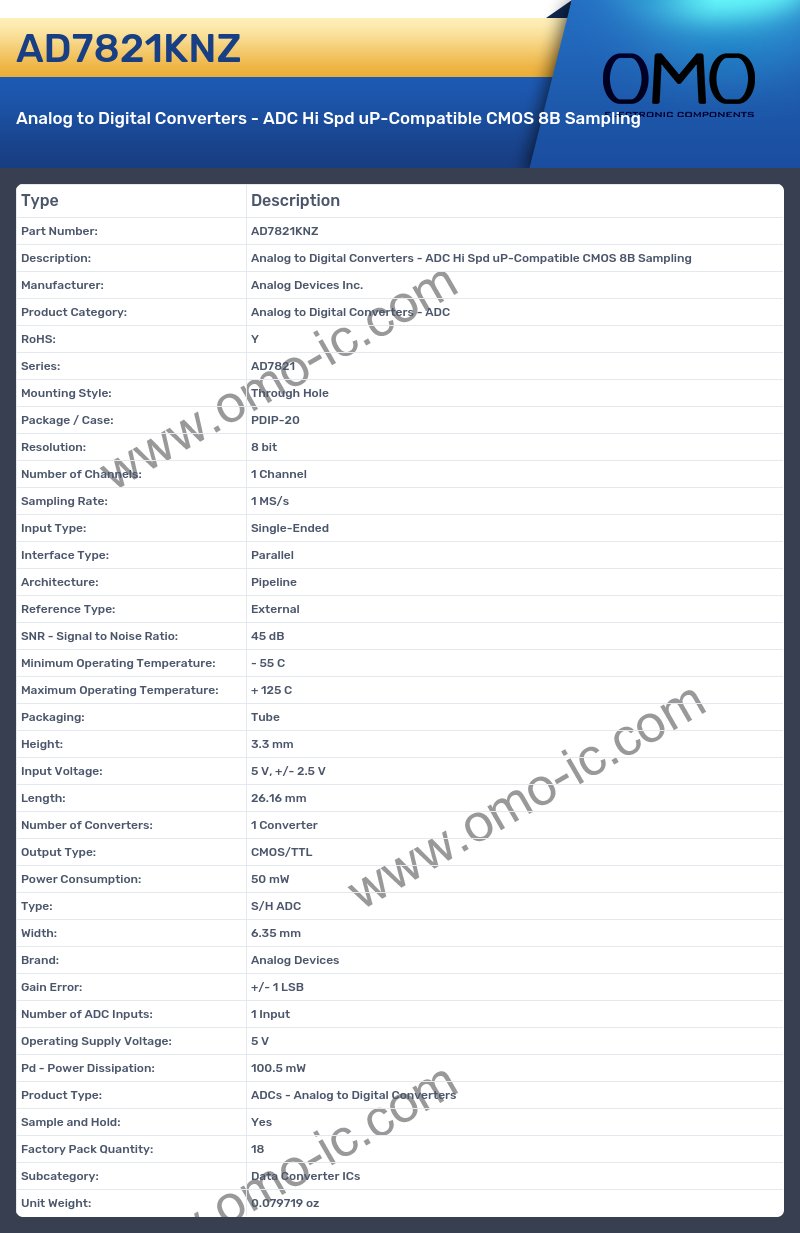

AD7821KNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7821
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External
• SNR - Signal to Noise Ratio: 45 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.3 mm
• Input Voltage: 5 V, +/- 2.5 V
• Length: 26.16 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Power Consumption: 50 mW
• Type: S/H ADC
• Width: 6.35 mm
• Brand: Analog Devices
• Gain Error: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 18
• Subcategory: Data Converter ICs
• Unit Weight: 0.079719 oz
