AD7765BRUZ

AD7765BRUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 156 kS/s. Differential input type Interface Type: SPI Sigma-Delta architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.05 mm. n++3.2768 Vp-p Input Voltage 9.7 mm long Analog Devices is a trusted brand for quality electronics EVAL-AD7765EDZ is a versatile development platform for hardware and software 0.04 %FSR is 0.2%. INL is within 0.0036 % FSR 2.5 V, 5 V operating supply voltage range 371 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.014215 oz of Unit Weight

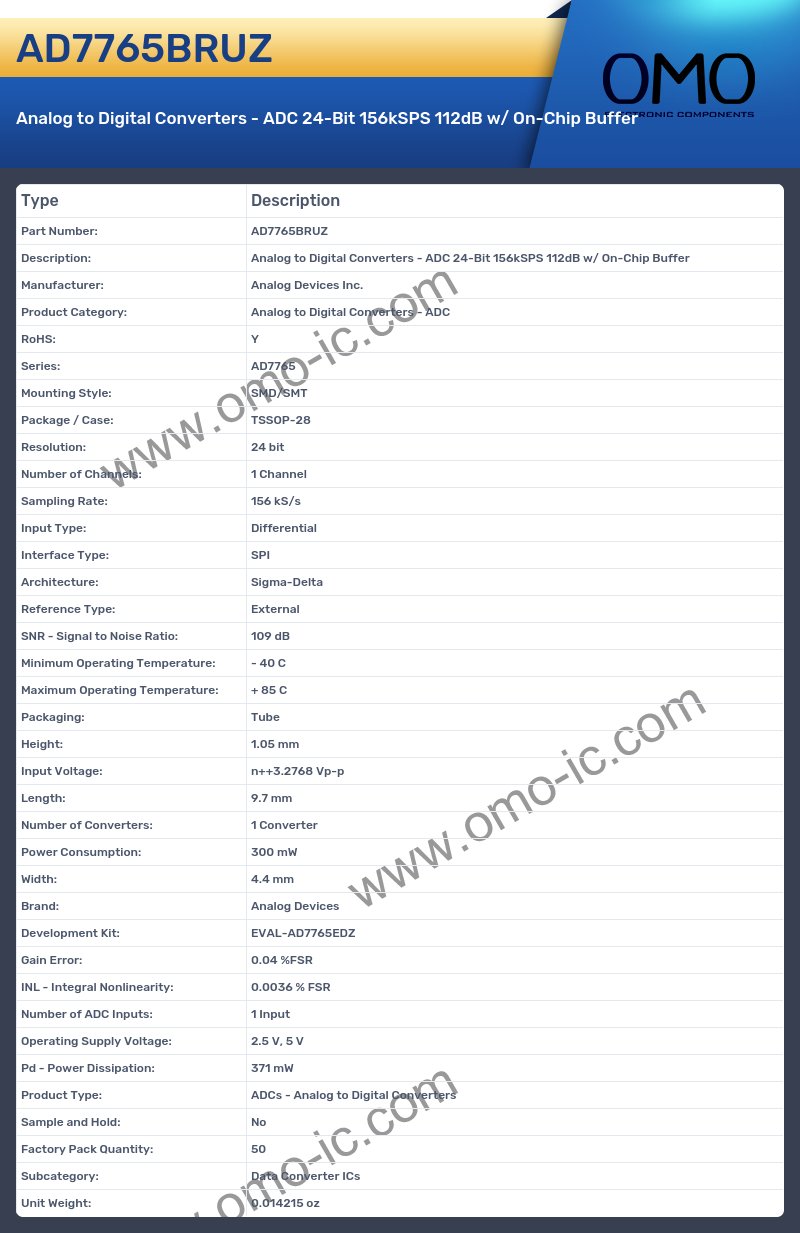

AD7765BRUZ Image

AD7765BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7765
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 24 bit
• Number of Channels: 1 Channel
• Sampling Rate: 156 kS/s
• Input Type: Differential
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External
• SNR - Signal to Noise Ratio: 109 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.05 mm
• Input Voltage: n++3.2768 Vp-p
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 300 mW
• Width: 4.4 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7765EDZ
• Gain Error: 0.04 %FSR
• INL - Integral Nonlinearity: 0.0036 % FSR
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 2.5 V, 5 V
• Pd - Power Dissipation: 371 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.014215 oz
