AD7738BRUZ

AD7738BRUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 15.4 kS/s. Differential/Single-Ended input type Interface Type: 3-Wire, SPI Sigma-Delta architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tube packaging for easy dispensing The height of the product is 1.05 mm. 0.625 V/1.25 V/2.5 V, n++0.625 V/n++1.25 V/n++2.5 V Input Voltage 9.7 mm long Analog Devices is a trusted brand for quality electronics EVAL-AD7738EBZ is a versatile development platform for hardware and software +/- 0.2 %FSR is 0.2%. INL is within +/- 0.0015 % FSR 5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.014215 oz of Unit Weight

AD7738BRUZ Image

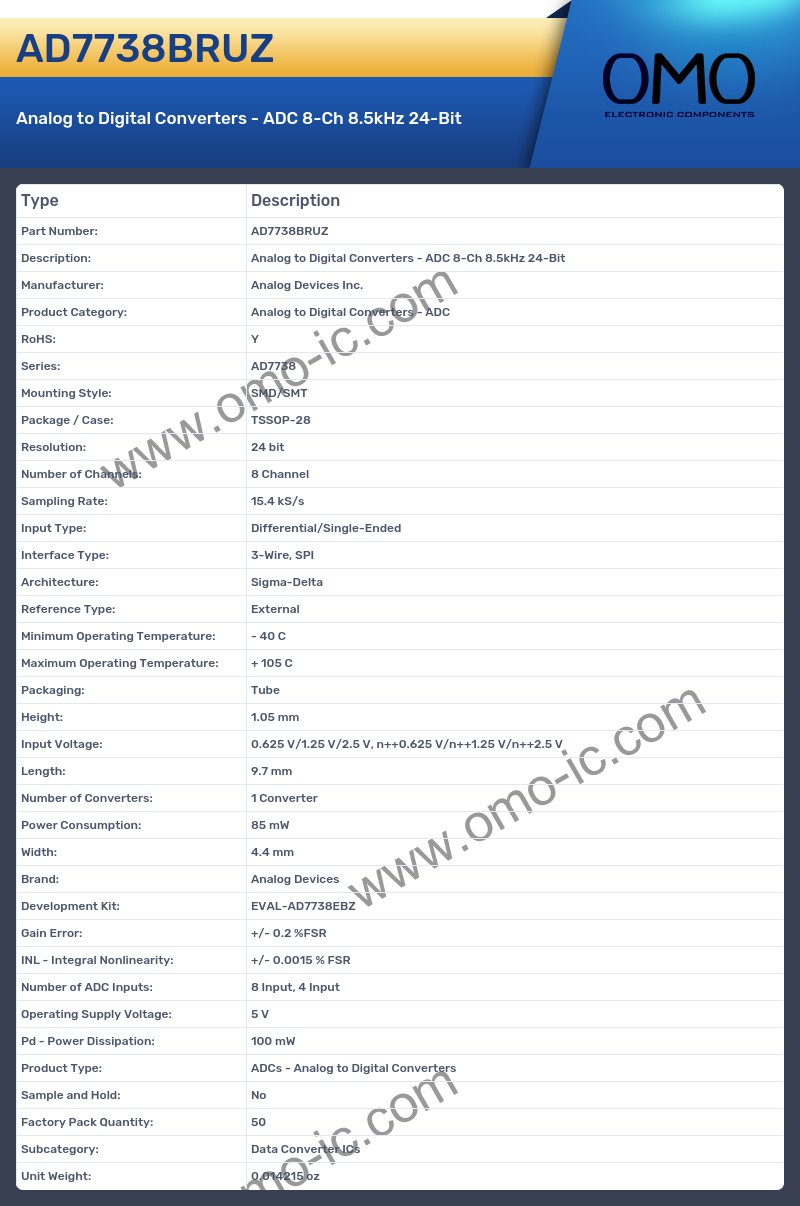

AD7738BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7738
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 24 bit
• Number of Channels: 8 Channel
• Sampling Rate: 15.4 kS/s
• Input Type: Differential/Single-Ended
• Interface Type: 3-Wire, SPI
• Architecture: Sigma-Delta
• Reference Type: External
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tube
• Height: 1.05 mm
• Input Voltage: 0.625 V/1.25 V/2.5 V, n++0.625 V/n++1.25 V/n++2.5 V
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 85 mW
• Width: 4.4 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7738EBZ
• Gain Error: +/- 0.2 %FSR
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Number of ADC Inputs: 8 Input, 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.014215 oz
