AD7580JPZ

AD7580JPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. PLCC-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 50 kS/s. Differential input type Interface Type: Parallel SAR architecture External is the reference type. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 3.94 mm. 2.5 V, 5 V, +/- 2.5 V Input Voltage 11.58 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. 5 LSB is 0.2%. INL is within 1 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 50 mW ADCs - Analog to Digital Converters product type 39 of 100 Data Converter ICs as subcategory 1. 0.041719 oz of Unit Weight

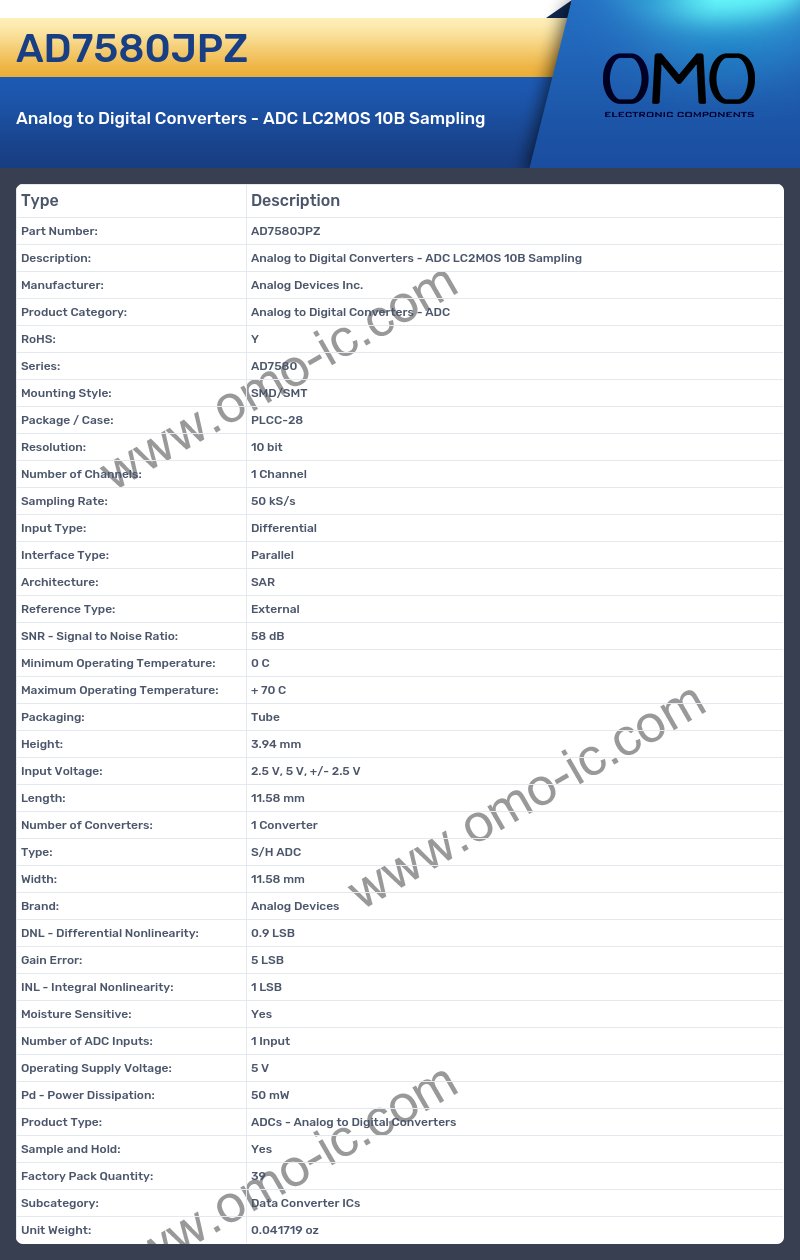

AD7580JPZ Image

AD7580JPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7580
• Mounting Style: SMD/SMT
• Package / Case: PLCC-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 50 kS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 58 dB
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Height: 3.94 mm
• Input Voltage: 2.5 V, 5 V, +/- 2.5 V
• Length: 11.58 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 11.58 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: 0.9 LSB
• Gain Error: 5 LSB
• INL - Integral Nonlinearity: 1 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 50 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 39
• Subcategory: Data Converter ICs
• Unit Weight: 0.041719 oz
