AD7329BRUZ-REEL7

AD7329BRUZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: Microwire, QSPI, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.05 mm. 10 V, +/- 2.5 V/+/- 5 V/+/- 10 V Input Voltage 7.8 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 0.9 LSB/1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 7 LSB is 0.2%. INL is within +/- 1.1 LSB 5 V, 15 V operating supply voltage range 30 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.007478 oz of Unit Weight

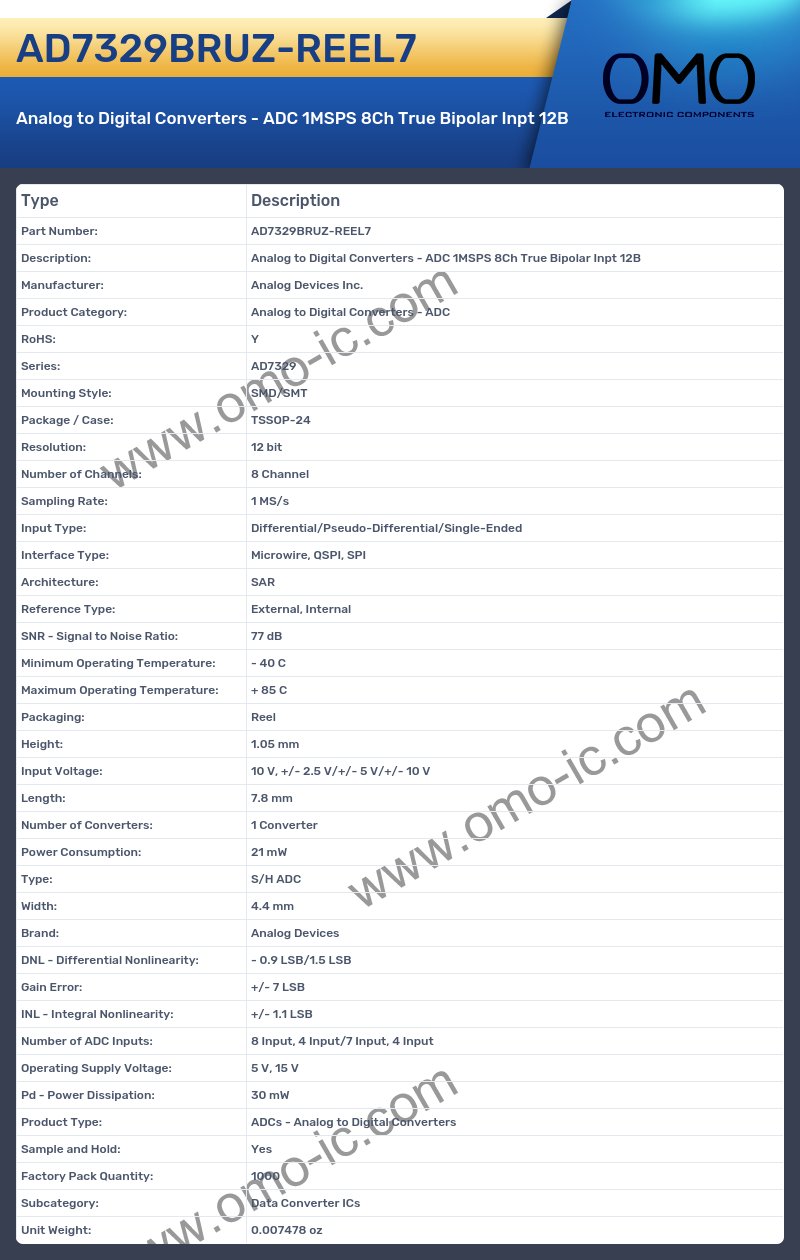

AD7329BRUZ-REEL7 Image

AD7329BRUZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7329
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 12 bit
• Number of Channels: 8 Channel
• Sampling Rate: 1 MS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: Microwire, QSPI, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 77 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.05 mm
• Input Voltage: 10 V, +/- 2.5 V/+/- 5 V/+/- 10 V
• Length: 7.8 mm
• Number of Converters: 1 Converter
• Power Consumption: 21 mW
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 0.9 LSB/1.5 LSB
• Gain Error: +/- 7 LSB
• INL - Integral Nonlinearity: +/- 1.1 LSB
• Number of ADC Inputs: 8 Input, 4 Input/7 Input, 4 Input
• Operating Supply Voltage: 5 V, 15 V
• Pd - Power Dissipation: 30 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.007478 oz
