AD7228ABR

AD7228ABR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 200 kS/s. This product is equipped with 8 Channel for efficient performance. 5 us settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 16.5 V Supply Voltage - Min: 10.8 V, 13.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. 15.6 mm long The output type is Voltage. This device belongs to the Precision type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 1 LSB is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 13.5 V to 16.5 V, 10.8 V to 16.5 V operating supply voltage range 1000 mW DACs - Digital to Analog Converters product type 31 of 100 Data Converter ICs as subcategory 1. 0.038731 oz of Unit Weight

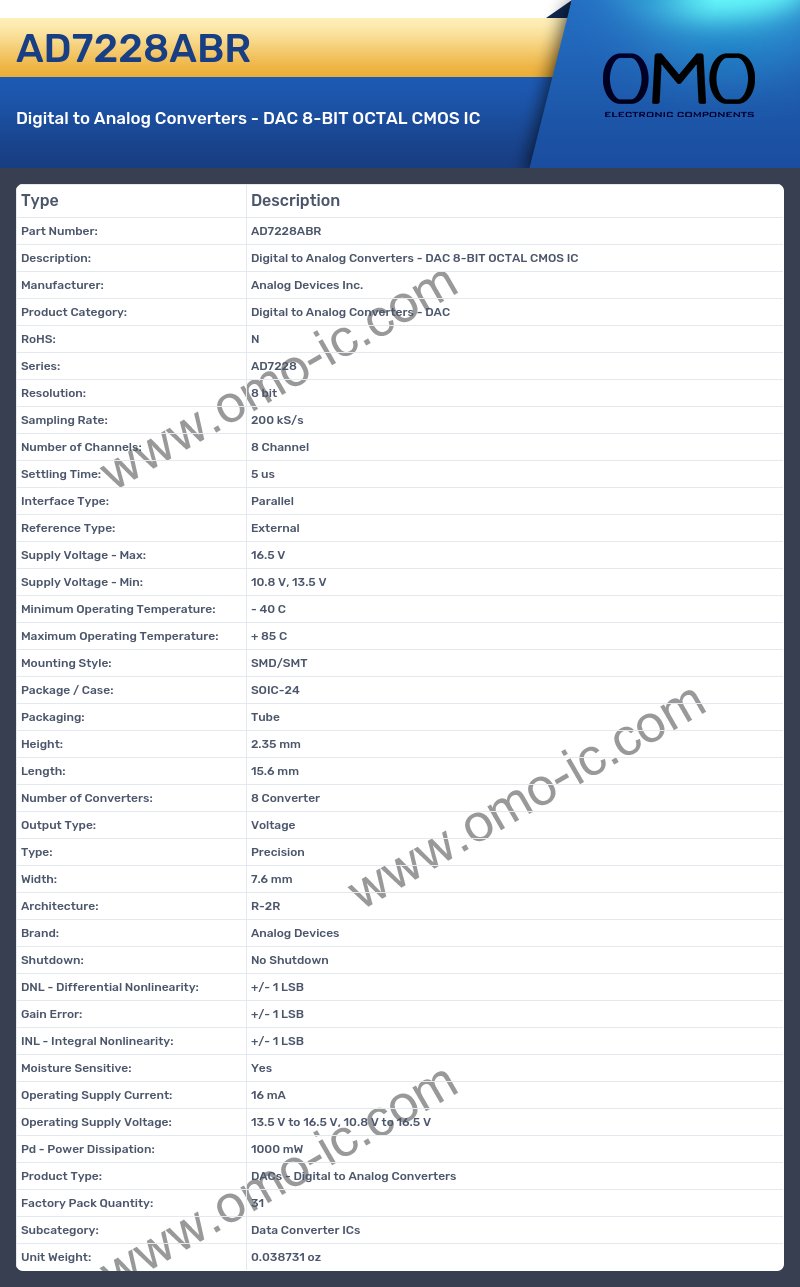

AD7228ABR Image

AD7228ABR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7228
• Resolution: 8 bit
• Sampling Rate: 200 kS/s
• Number of Channels: 8 Channel
• Settling Time: 5 us
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 10.8 V, 13.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Packaging: Tube
• Height: 2.35 mm
• Length: 15.6 mm
• Number of Converters: 8 Converter
• Output Type: Voltage
• Type: Precision
• Width: 7.6 mm
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 16 mA
• Operating Supply Voltage: 13.5 V to 16.5 V, 10.8 V to 16.5 V
• Pd - Power Dissipation: 1000 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 31
• Subcategory: Data Converter ICs
• Unit Weight: 0.038731 oz
