AD7091BCPZ-RL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: 3-Wire, QSPI, SPI SAR architecture Internal is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The output type is CMOS/TTL. Analog Devices is a trusted brand for quality electronics EVAL-AD7091SDZ is a versatile development platform for hardware and software The 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 1.2 LSB is 0.2%. INL is within +/- 0.6 LSB 2.09 V to 5.25 V operating supply voltage range 142 uW ADCs - Analog to Digital Converters product type 3000 of 100 Data Converter ICs as subcategory 1. 0.000705 oz of Unit Weight

AD7091BCPZ-RL7 Image

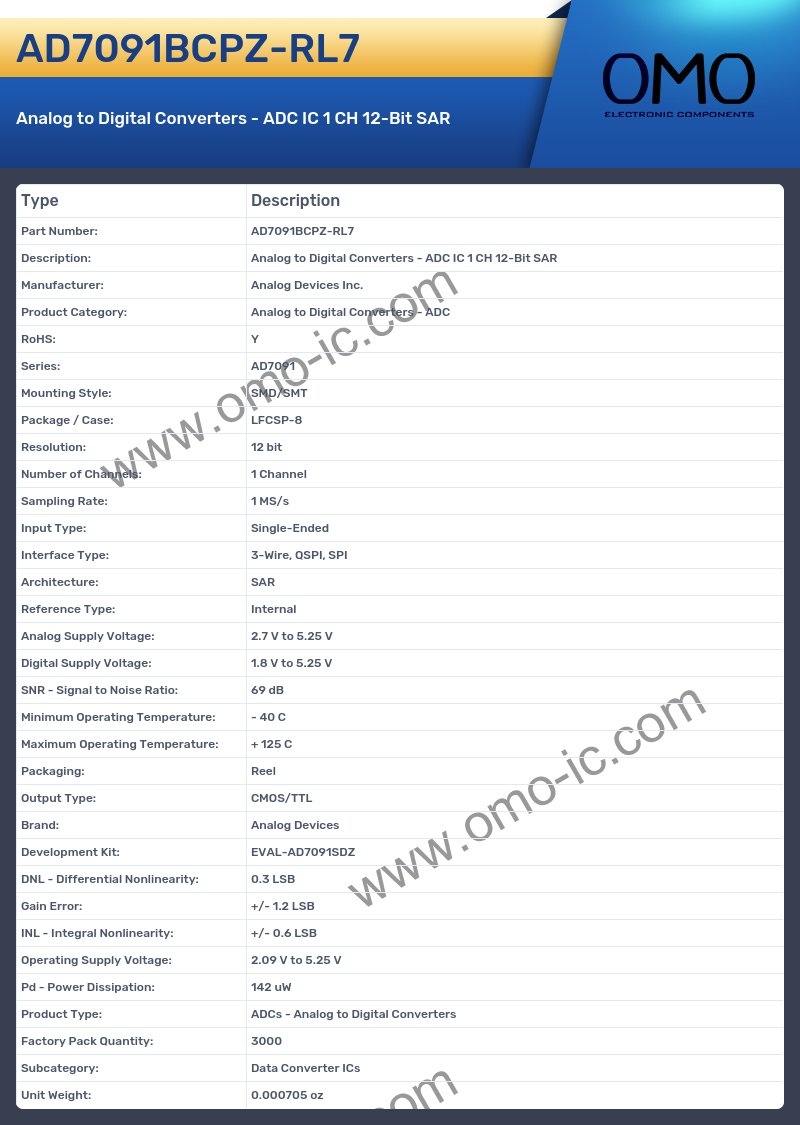

AD7091BCPZ-RL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7091
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: 3-Wire, QSPI, SPI
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.8 V to 5.25 V
• SNR - Signal to Noise Ratio: 69 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Output Type: CMOS/TTL
• Brand: Analog Devices
• Development Kit: EVAL-AD7091SDZ
• DNL - Differential Nonlinearity: 0.3 LSB
• Gain Error: +/- 1.2 LSB
• INL - Integral Nonlinearity: +/- 0.6 LSB
• Operating Supply Voltage: 2.09 V to 5.25 V
• Pd - Power Dissipation: 142 uW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 3000
• Subcategory: Data Converter ICs
• Unit Weight: 0.000705 oz
