AD678KD

AD678KD Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-28 SB package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 2.16 mm. 10 V, +/- 5 V Input Voltage 37.85 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics +/- 6 LSB is 0.2%. INL is within +/- 1 LSB 5 V, 12 V operating supply voltage range 745 mW ADCs - Analog to Digital Converters product type 13 of 100 Data Converter ICs as subcategory

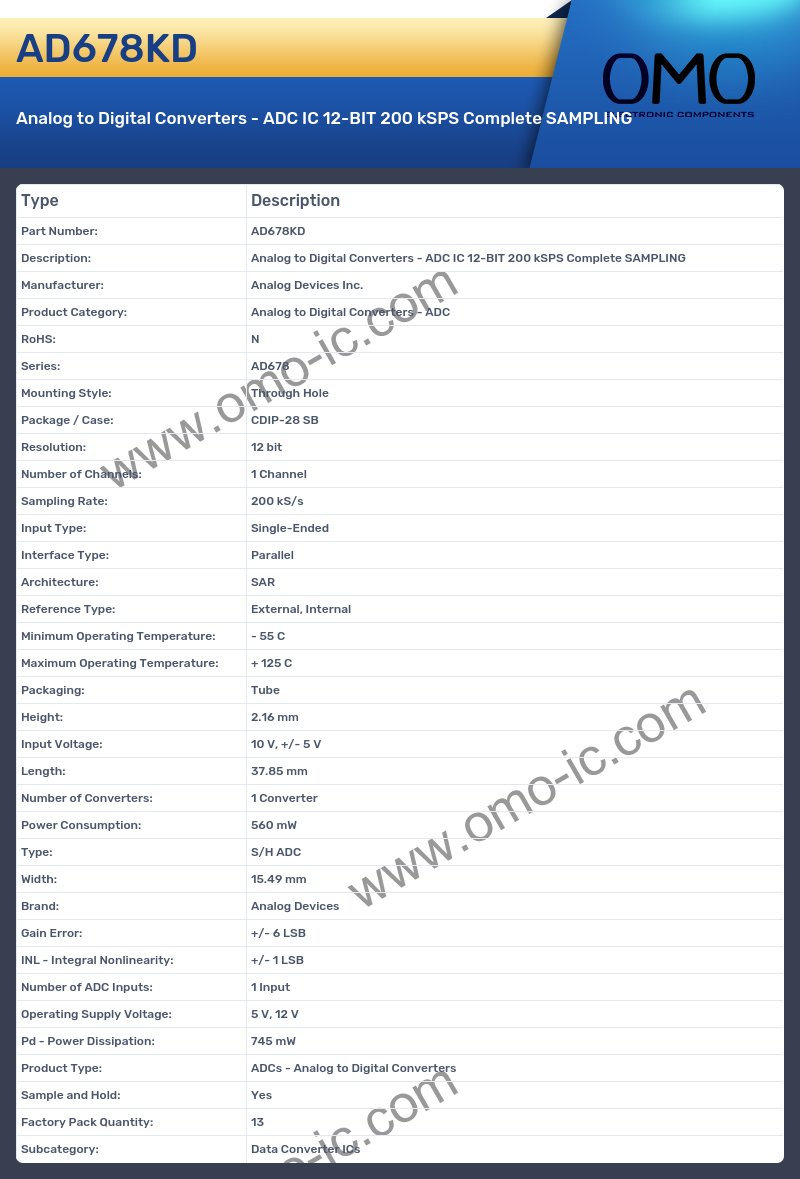

AD678KD Image

AD678KD Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD678
• Mounting Style: Through Hole
• Package / Case: CDIP-28 SB
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 200 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 2.16 mm
• Input Voltage: 10 V, +/- 5 V
• Length: 37.85 mm
• Number of Converters: 1 Converter
• Power Consumption: 560 mW
• Type: S/H ADC
• Width: 15.49 mm
• Brand: Analog Devices
• Gain Error: +/- 6 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V, 12 V
• Pd - Power Dissipation: 745 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 13
• Subcategory: Data Converter ICs
