AD5570ARS

AD5570ARS Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 83 kS/s. This product is equipped with 1 Channel for efficient performance. 12 us settling time Interface Type: Serial, 3-Wire, DSP, SPI External is the reference type. Supply Voltage - Max: 16.5 V Supply Voltage - Min: 11.4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.7 mm. 6.2 mm long The output type is Voltage. This device belongs to the Precision type. R-2R architecture Analog Devices is a trusted brand for quality electronics EVAL-AD5570SDZ is a versatile development platform for hardware and software The +/- 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.6 LSB 11.4 V to 16.5 V operating supply voltage range 100 mW DACs - Digital to Analog Converters product type 77 of 100 Data Converter ICs as subcategory 1. 0.004586 oz of Unit Weight

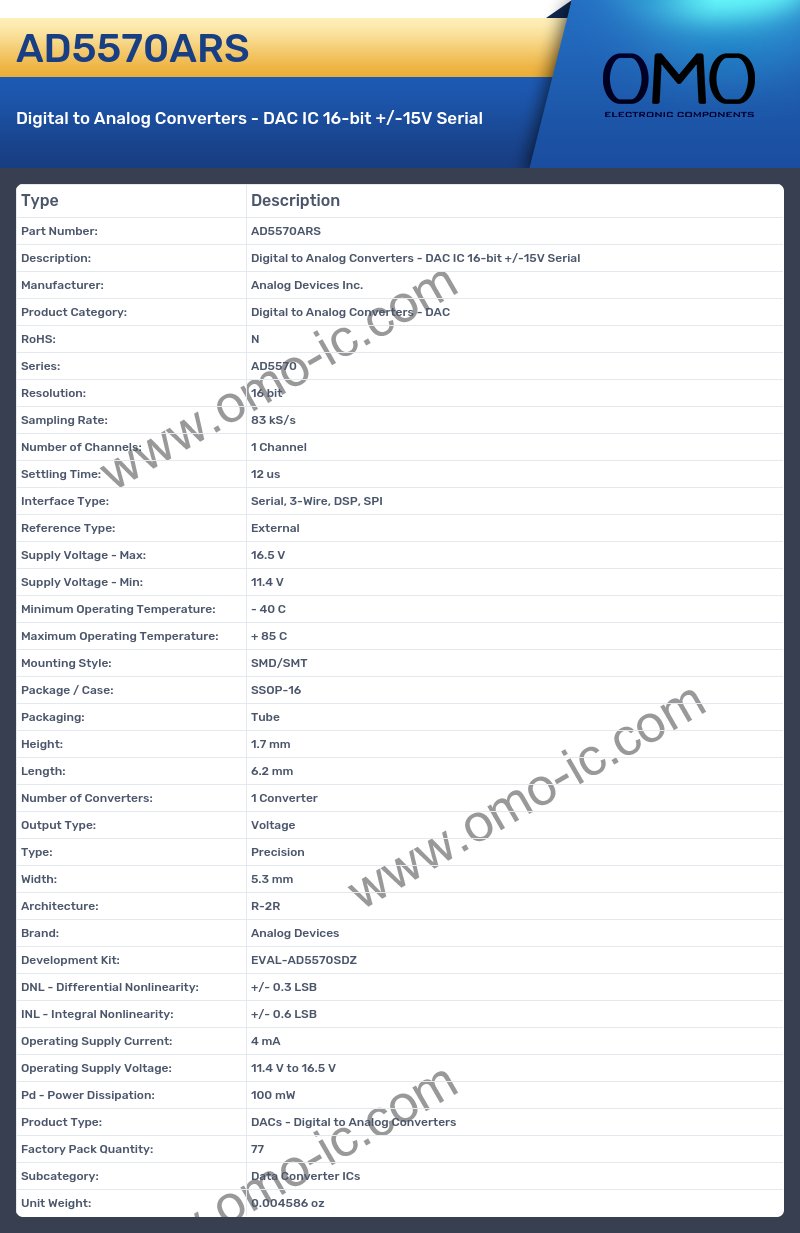

AD5570ARS Image

AD5570ARS Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD5570
• Resolution: 16 bit
• Sampling Rate: 83 kS/s
• Number of Channels: 1 Channel
• Settling Time: 12 us
• Interface Type: Serial, 3-Wire, DSP, SPI
• Reference Type: External
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 11.4 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-16
• Packaging: Tube
• Height: 1.7 mm
• Length: 6.2 mm
• Number of Converters: 1 Converter
• Output Type: Voltage
• Type: Precision
• Width: 5.3 mm
• Architecture: R-2R
• Brand: Analog Devices
• Development Kit: EVAL-AD5570SDZ
• DNL - Differential Nonlinearity: +/- 0.3 LSB
• INL - Integral Nonlinearity: +/- 0.6 LSB
• Operating Supply Current: 4 mA
• Operating Supply Voltage: 11.4 V to 16.5 V
• Pd - Power Dissipation: 100 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 77
• Subcategory: Data Converter ICs
• Unit Weight: 0.004586 oz
