AD5541BR

AD5541BR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1.5 MS/s. This product is equipped with 1 Channel for efficient performance. 1 us settling time Interface Type: Serial, 3-Wire, DSP, SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm. 5 mm long The output type is Voltage. This device belongs to the General Purpose type. Segment architecture Analog Devices is a trusted brand for quality electronics EVAL-AD5541/42EBZ is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2 LSB 2.7 V to 5.5 V operating supply voltage range 0.825 mW DACs - Digital to Analog Converters product type 98 of 100 Data Converter ICs as subcategory 1. 0.019048 oz of Unit Weight

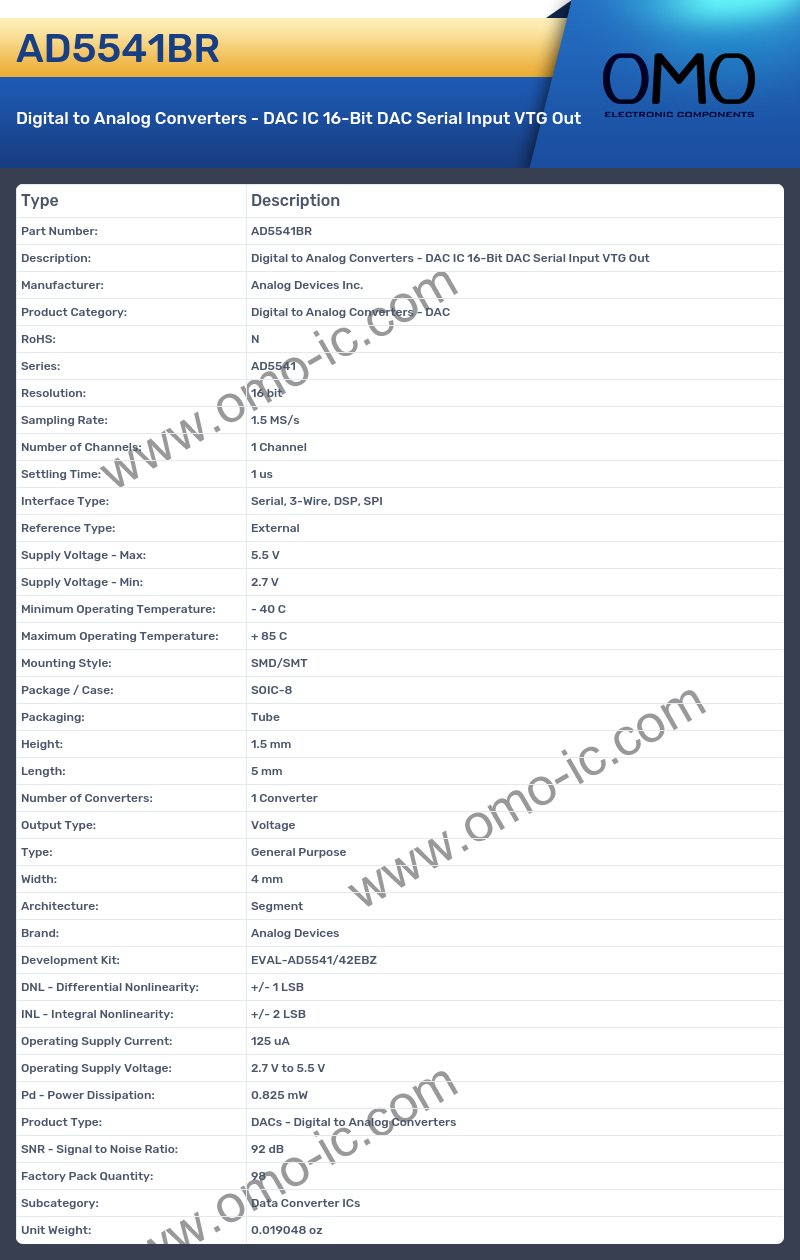

AD5541BR Image

AD5541BR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD5541
• Resolution: 16 bit
• Sampling Rate: 1.5 MS/s
• Number of Channels: 1 Channel
• Settling Time: 1 us
• Interface Type: Serial, 3-Wire, DSP, SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.5 mm
• Length: 5 mm
• Number of Converters: 1 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 4 mm
• Architecture: Segment
• Brand: Analog Devices
• Development Kit: EVAL-AD5541/42EBZ
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 2 LSB
• Operating Supply Current: 125 uA
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 0.825 mW
• Product Type: DACs - Digital to Analog Converters
• SNR - Signal to Noise Ratio: 92 dB
• Factory Pack Quantity: 98
• Subcategory: Data Converter ICs
• Unit Weight: 0.019048 oz
