AD10200BZ

AD10200BZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. CLCC-68 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 105 MS/s. Differential input type Interface Type: Parallel Pipeline architecture Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Bulk packaging for easy dispensing The height of the product is 4.45 mm. 2.048 Vp-p Input Voltage 24.13 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics AD10200/PCB is a versatile development platform for hardware and software The +/- 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 9 %FSR is 0.2%. INL is within +/- 3 LSB 3 V, 5 V operating supply voltage range 2.2 W ADCs - Analog to Digital Converters product type 1 of 100 Data Converter ICs as subcategory

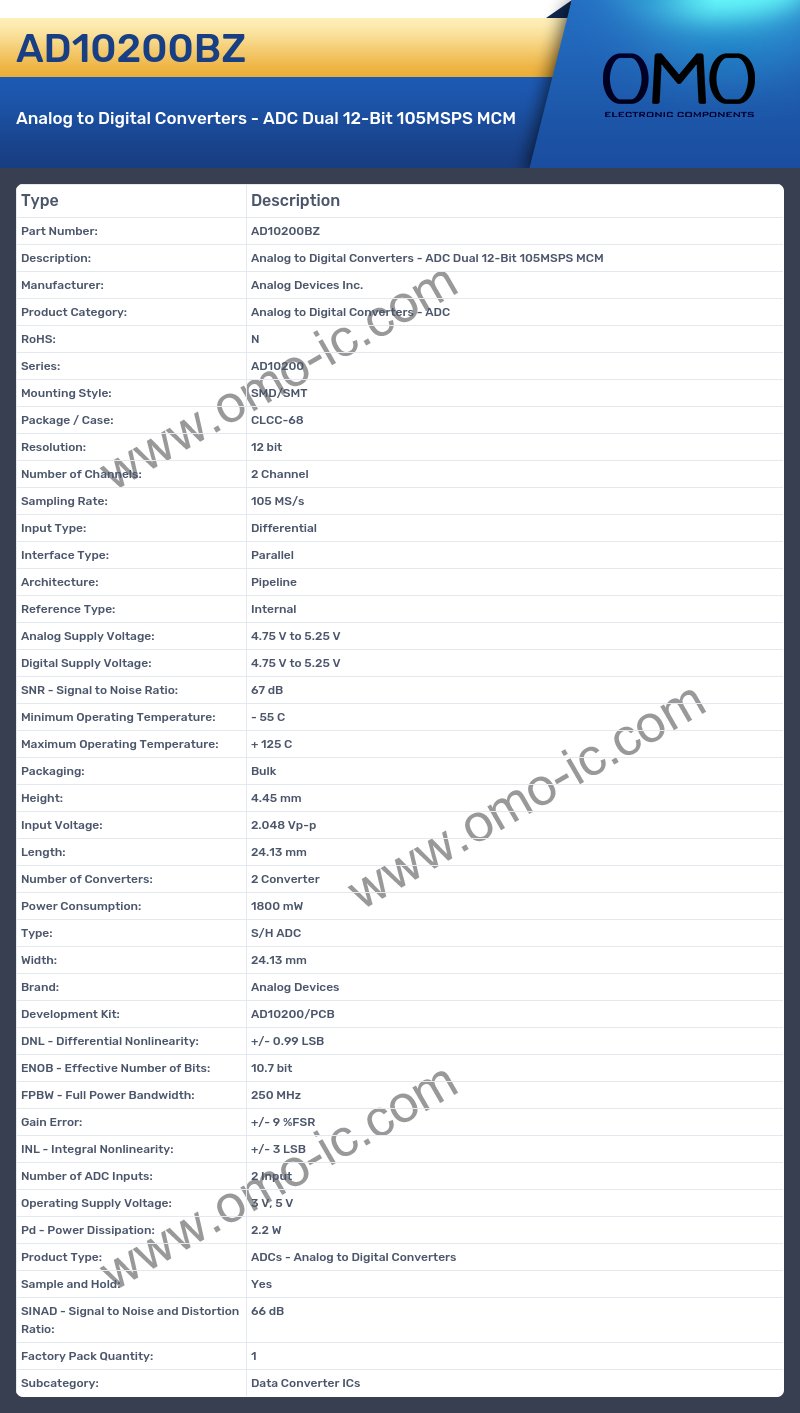

AD10200BZ Image

AD10200BZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD10200
• Mounting Style: SMD/SMT
• Package / Case: CLCC-68
• Resolution: 12 bit
• Number of Channels: 2 Channel
• Sampling Rate: 105 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 67 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Bulk
• Height: 4.45 mm
• Input Voltage: 2.048 Vp-p
• Length: 24.13 mm
• Number of Converters: 2 Converter
• Power Consumption: 1800 mW
• Type: S/H ADC
• Width: 24.13 mm
• Brand: Analog Devices
• Development Kit: AD10200/PCB
• DNL - Differential Nonlinearity: +/- 0.99 LSB
• ENOB - Effective Number of Bits: 10.7 bit
• FPBW - Full Power Bandwidth: 250 MHz
• Gain Error: +/- 9 %FSR
• INL - Integral Nonlinearity: +/- 3 LSB
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 3 V, 5 V
• Pd - Power Dissipation: 2.2 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SINAD - Signal to Noise and Distortion Ratio: 66 dB
• Factory Pack Quantity: 1
• Subcategory: Data Converter ICs
