74V1G14STR

74V1G14STR Overview

Product belongs to the 74V series. Digi-ReelR is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: SOT-23-5 1 is 8. 1μA maximum quiescent current. Inverter logic type 0.9 V ~ 1.65 V is a Logic-Level-Low; 2.2 V ~ 3.85 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V 74V logic type High-Level-Output-Current of - 8 mA 8 mA low-level output current

74V1G14STR Image

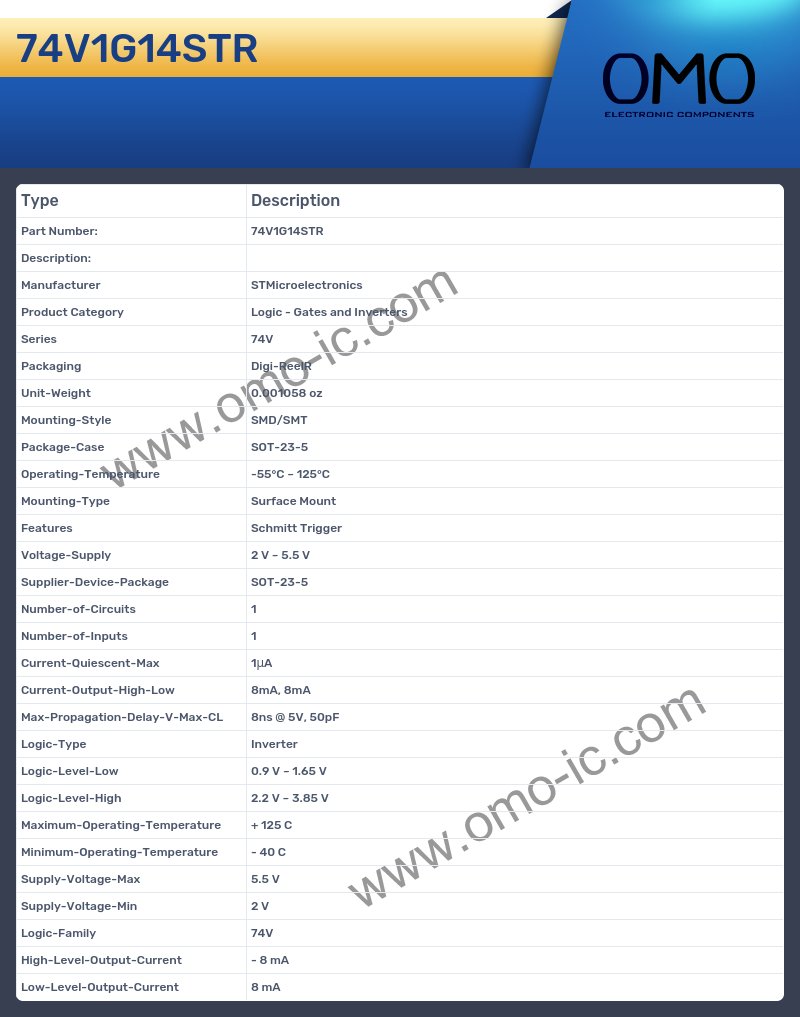

74V1G14STR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74V
• Packaging Digi-ReelR
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package SOT-23-5
• Number-of-Circuits 1
• Number-of-Inputs 1
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 8mA, 8mA
• Max-Propagation-Delay-V-Max-CL 8ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.9 V ~ 1.65 V
• Logic-Level-High 2.2 V ~ 3.85 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family 74V
• High-Level-Output-Current - 8 mA
• Low-Level-Output-Current 8 mA
