74LVX86MTR Overview

Product belongs to the 74LVX series. Tape & Reel (TR) is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-SO 4 is 8. 2μA maximum quiescent current. XOR (Exclusive OR) logic type 0.5 V ~ 0.8 V is a Logic-Level-Low; 1.5 V ~ 2.4 V is the Logic-Level-High

74LVX86MTR Image

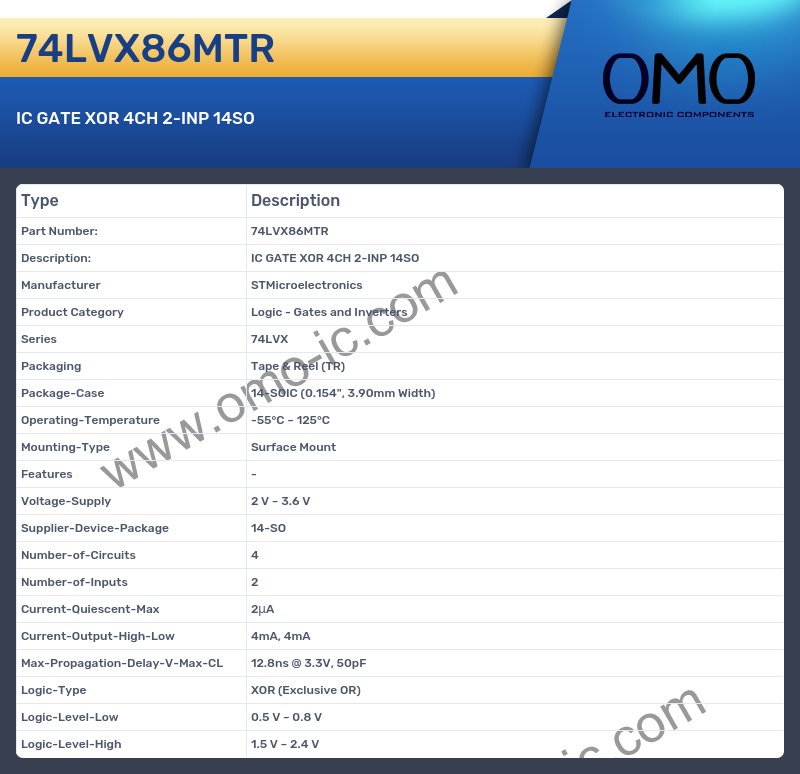

74LVX86MTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74LVX
• Packaging Tape & Reel (TR)
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 4mA, 4mA
• Max-Propagation-Delay-V-Max-CL 12.8ns @ 3.3V, 50pF
• Logic-Type XOR (Exclusive OR)
• Logic-Level-Low 0.5 V ~ 0.8 V
• Logic-Level-High 1.5 V ~ 2.4 V
