74LVX05TTR

74LVX05TTR Overview

Product belongs to the 74LVX series. Tape & Reel (TR) is the packaging method for this product 14-TSSOP (0.173", 4.40mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-TSSOP 6 is 8. 2μA maximum quiescent current. Inverter logic type 0.5 V ~ 0.8 V is a Logic-Level-Low; 1.5 V ~ 2.4 V is the Logic-Level-High

74LVX05TTR Image

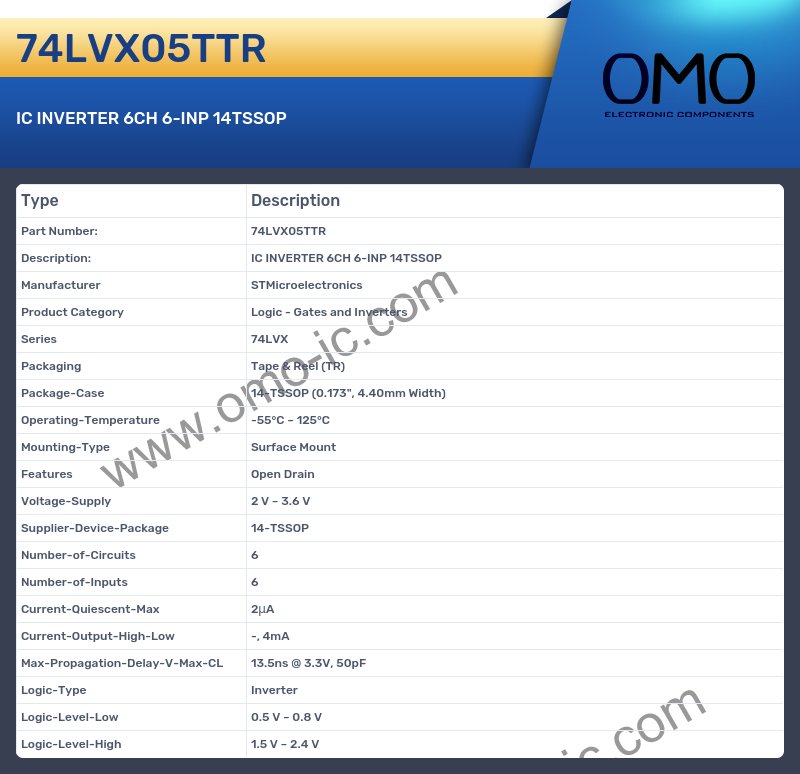

74LVX05TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74LVX
• Packaging Tape & Reel (TR)
• Package-Case 14-TSSOP (0.173", 4.40mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Open Drain
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 2μA
• Current-Output-High-Low -, 4mA
• Max-Propagation-Delay-V-Max-CL 13.5ns @ 3.3V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.5 V ~ 0.8 V
• Logic-Level-High 1.5 V ~ 2.4 V
