74ALVCHR16409GRG4

74ALVCHR16409GRG4 Overview

This product is manufactured by Texas Instruments. The product uses the ALVC logic family. This product has 1 circuit. The propagation delay time is 7 ns at 2.7 V, 6.2 ns at 3.3 V. Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. TSSOP-56 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Registered Bus Exchanger The height of the product is 1.15 mm. 14 mm long The 9 x 2:2. The output type is 3-State. Supply Type: Single Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. Maximum supply current: 40 uA This product has a - 12 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 12 mA 1.65 V to 3.6 V operating supply voltage range Polarity type: Non-Inverting Universal Bus Functions product type 1 of 100 Logic ICs as subcategory 1. 0.008917 oz of Unit Weight

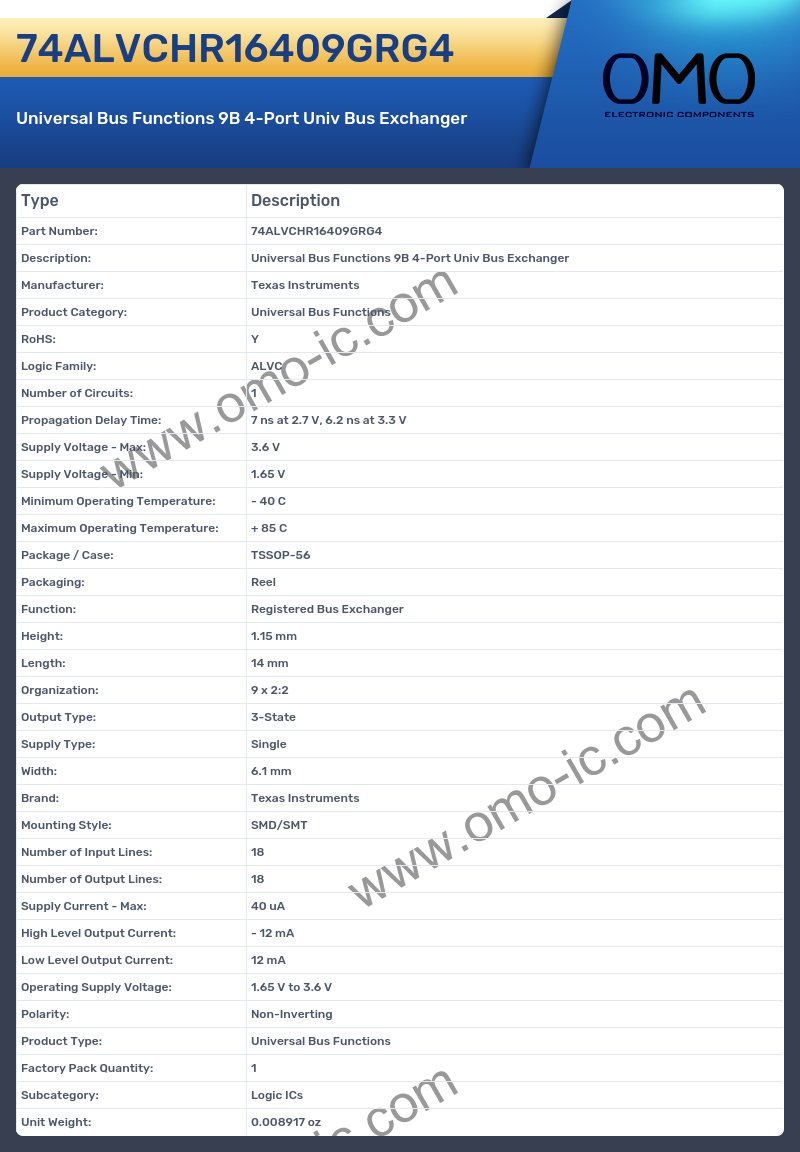

74ALVCHR16409GRG4 Image

74ALVCHR16409GRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Universal Bus Functions
• RoHS: Y
• Logic Family: ALVC
• Number of Circuits: 1
• Propagation Delay Time: 7 ns at 2.7 V, 6.2 ns at 3.3 V
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: TSSOP-56
• Packaging: Reel
• Function: Registered Bus Exchanger
• Height: 1.15 mm
• Length: 14 mm
• Organization: 9 x 2:2
• Output Type: 3-State
• Supply Type: Single
• Width: 6.1 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Input Lines: 18
• Number of Output Lines: 18
• Supply Current - Max: 40 uA
• High Level Output Current: - 12 mA
• Low Level Output Current: 12 mA
• Operating Supply Voltage: 1.65 V to 3.6 V
• Polarity: Non-Inverting
• Product Type: Universal Bus Functions
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.008917 oz
