5962-9961003HXA Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. CLCC-68 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture Internal is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Bulk packaging for easy dispensing The height of the product is 4.45 mm. +/- 0.5 V/+/- 1 V/+/- 2 V Input Voltage 24.13 mm long Analog Devices is a trusted brand for quality electronics AD10242/PCB is a versatile development platform for hardware and software The 1.25 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 1.5 %FSR is 0.2%. INL is within 0.5 LSB 5 V operating supply voltage range 2 W ADCs - Analog to Digital Converters product type 1 of 100 Data Converter ICs as subcategory

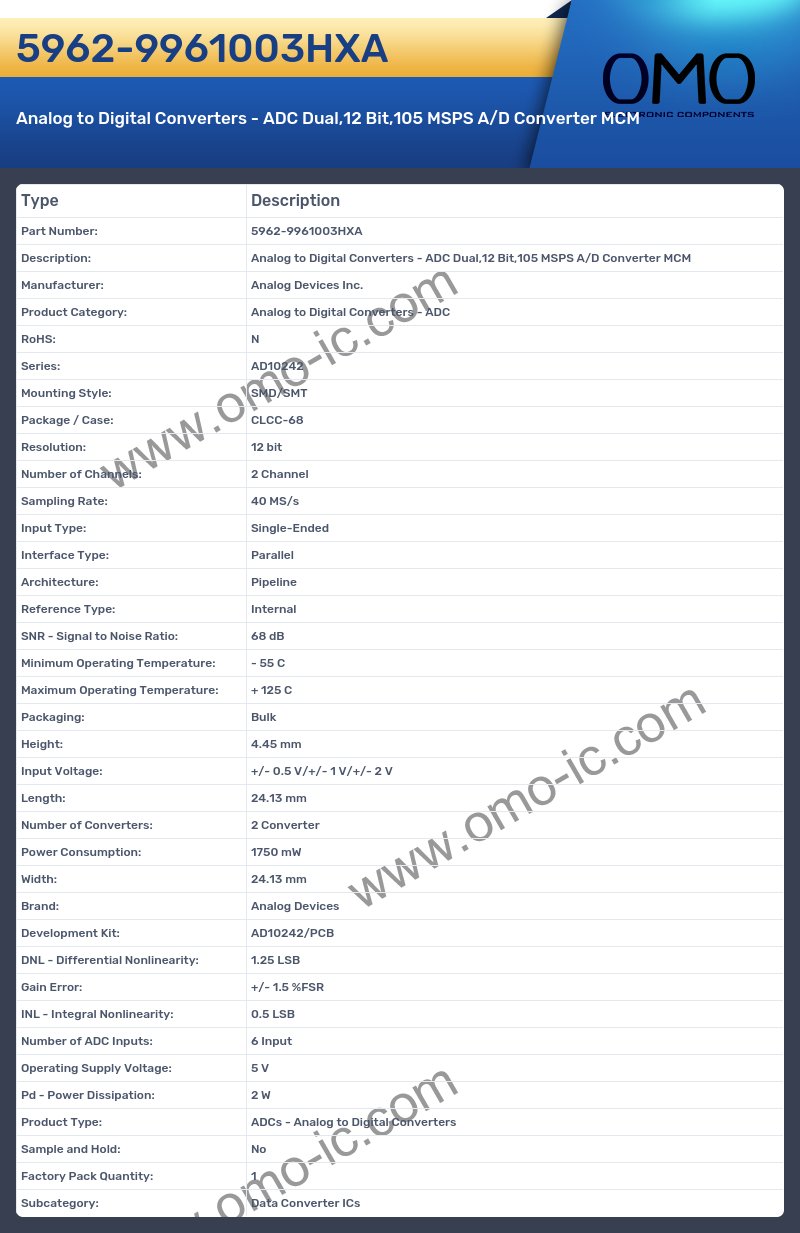

5962-9961003HXA Image

5962-9961003HXA Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD10242
• Mounting Style: SMD/SMT
• Package / Case: CLCC-68
• Resolution: 12 bit
• Number of Channels: 2 Channel
• Sampling Rate: 40 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• SNR - Signal to Noise Ratio: 68 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Bulk
• Height: 4.45 mm
• Input Voltage: +/- 0.5 V/+/- 1 V/+/- 2 V
• Length: 24.13 mm
• Number of Converters: 2 Converter
• Power Consumption: 1750 mW
• Width: 24.13 mm
• Brand: Analog Devices
• Development Kit: AD10242/PCB
• DNL - Differential Nonlinearity: 1.25 LSB
• Gain Error: +/- 1.5 %FSR
• INL - Integral Nonlinearity: 0.5 LSB
• Number of ADC Inputs: 6 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 2 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 1
• Subcategory: Data Converter ICs
