5962-9063201MLA Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFP-52 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel Pipeline architecture Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing The height of the product is 1.95 mm. 2.2 Vp-p Input Voltage 37.08 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The 1.5 LSB, ensuring accurate and precise analog-to-digital conversion. 10 %/FSR is 0.2%. INL is within 0.5 LSB 3.3 V, 5 V operating supply voltage range 1.75 W ADCs - Analog to Digital Converters product type 1 of 100 Data Converter ICs as subcategory

5962-9063201MLA Image

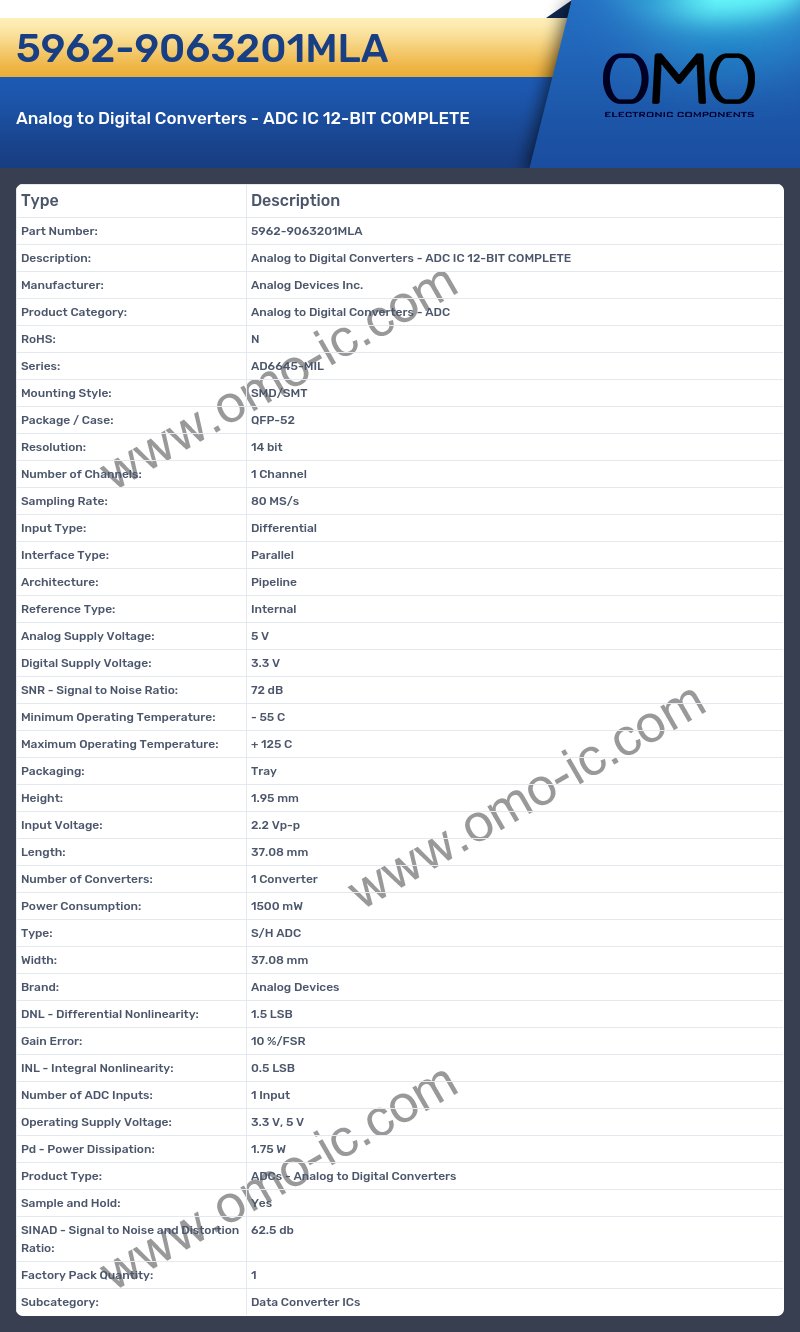

5962-9063201MLA Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD6645-MIL
• Mounting Style: SMD/SMT
• Package / Case: QFP-52
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 3.3 V
• SNR - Signal to Noise Ratio: 72 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Height: 1.95 mm
• Input Voltage: 2.2 Vp-p
• Length: 37.08 mm
• Number of Converters: 1 Converter
• Power Consumption: 1500 mW
• Type: S/H ADC
• Width: 37.08 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: 1.5 LSB
• Gain Error: 10 %/FSR
• INL - Integral Nonlinearity: 0.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V, 5 V
• Pd - Power Dissipation: 1.75 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SINAD - Signal to Noise and Distortion Ratio: 62.5 db
• Factory Pack Quantity: 1
• Subcategory: Data Converter ICs
